Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-61
Theory of Operation
Scanner Components
•Carriage Motor
The Carriage Motor drives the Scanhead.
•Scanner Home Position Sensor
The Scanner Home Position Sensor is an optical sensor on the Scanhead. A
part of the rear section of the Scanner frame functions as actuator for the
Scanner Home Position Sensor, thus detecting the Registration position.
• Cold Cathode Fluorescent Lamp (Exposure Lamp)
The Cold Cathode Fluorescent Lamp exposes the document.
•Charged Coupled Device Board
The Charged Coupled Device (CCD) Board (Image Sensor) converts optical
images into electrical signals.

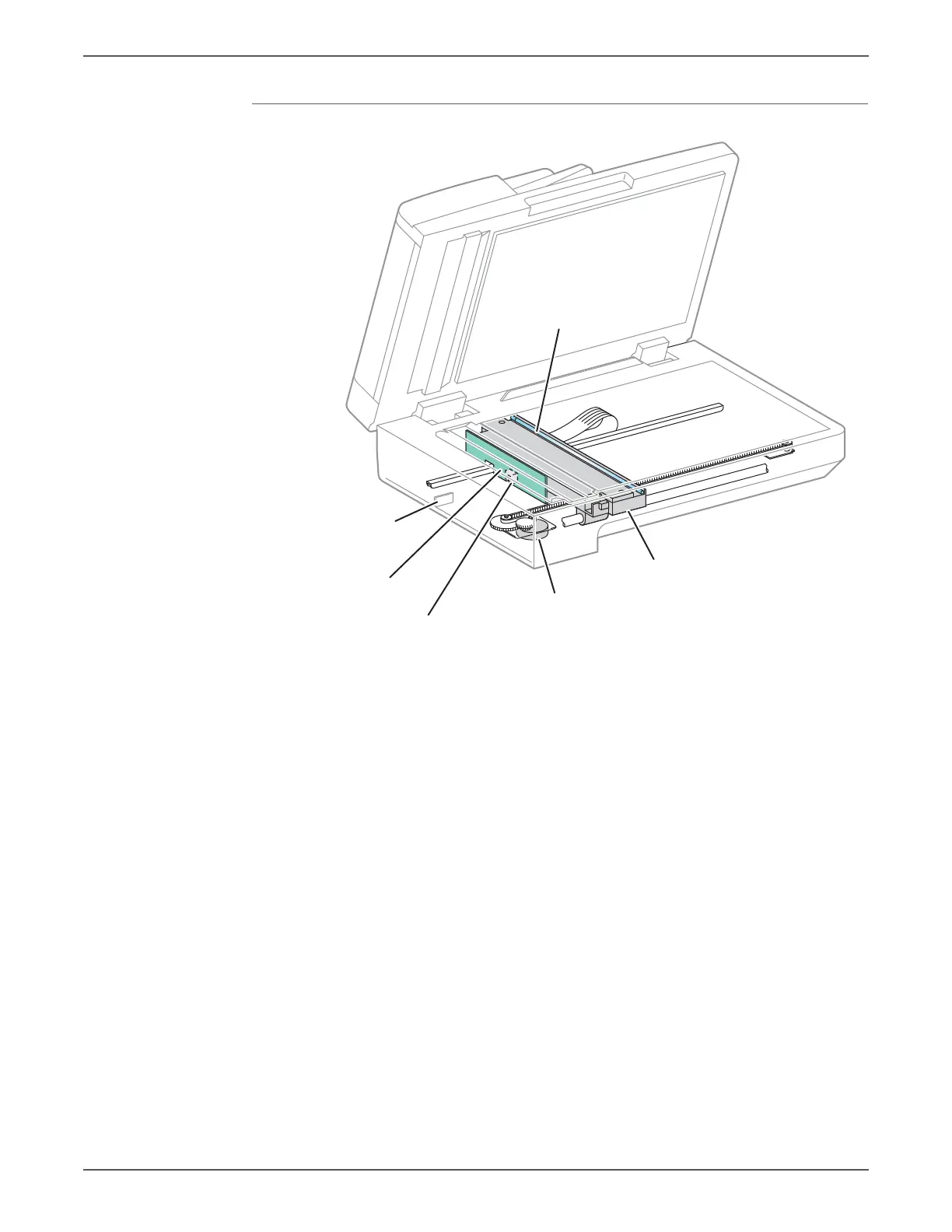

s6500-077
Scanhead
Scanner Home Position Sensor
Carriage Motor
Cold Cathode
Fluorescent Lamp
CCD Board
Home
Position
Actuator

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
