4-48 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
10. Close the Front Cover.
11. Locate the “Test Print” contacts on the MCU Board.
12. Close the Toner Door Interlock Switch.
13. Turn the printer On.

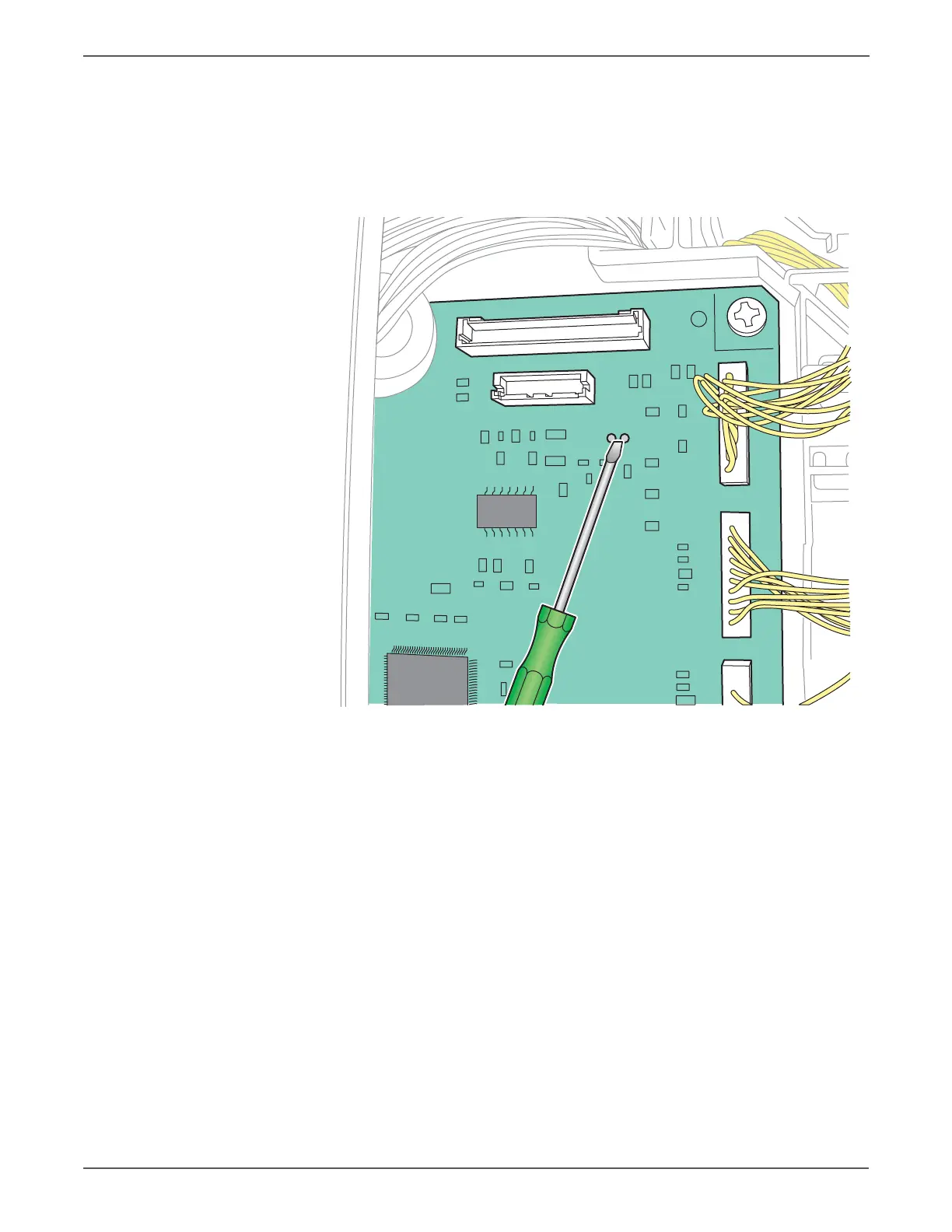

14. Using a flat-blade screwdriver, roll the tip of the screwdriver from one contact
to the other until they are shorted out.
Note
The contacts are sensitive in response to being shorted out. It may require
multiple attempts to get a test print.
s6500-136
