Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-63
General Troubleshooting
Scanner Lamp
1. Enter Service Diagnostics (page 4-8).

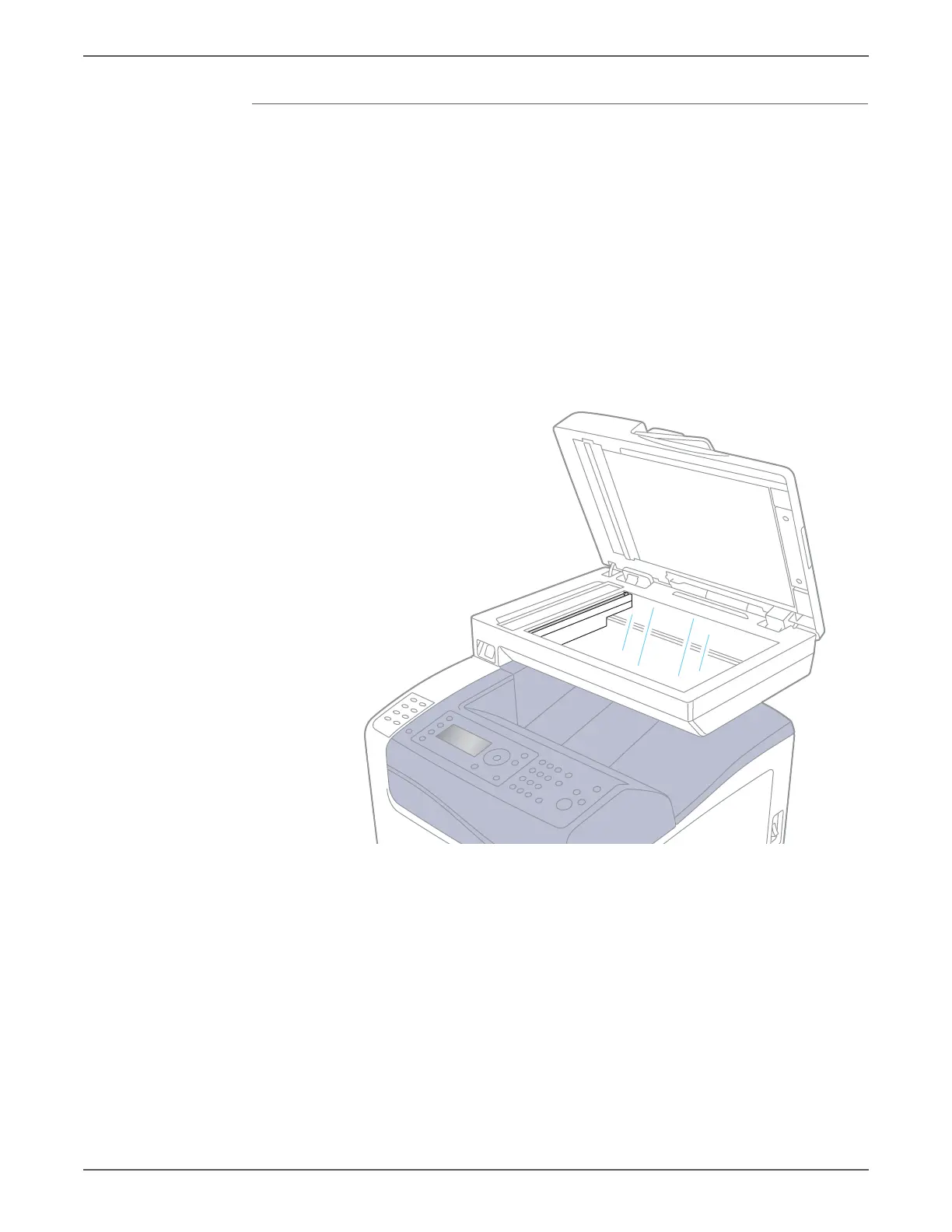

2. Open the Platen Cover.
3. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Lamp test.
4. Press the Arrow buttons to select Set OFF.
5. Press OK to run the test.
6. Check that the Lamp is Off.
7. Press Stop to return one step higher menu.
8. Repeat the Lamp test Fax/Scanner Diag > Scanner Maintenance > IIT I/O
Check >Lamp test.
9. Press the Arrow buttons to select Set ON.
10. Check that the Lamp is ON.
11. Press Stop to stop the test.
s6500-102
