Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-65
General Troubleshooting
ADF Motor
Note
Close the ADF Cover before testing the ADF Motor.
1. Enter Service Diagnostics (page 4-8).
2. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>ADF Motor test.
3. Press the Arrow buttons to select Forward.
4. Press OK to run the test.
5. Listen for motor operation.
6. Press Stop to stop the test.
s6500-104

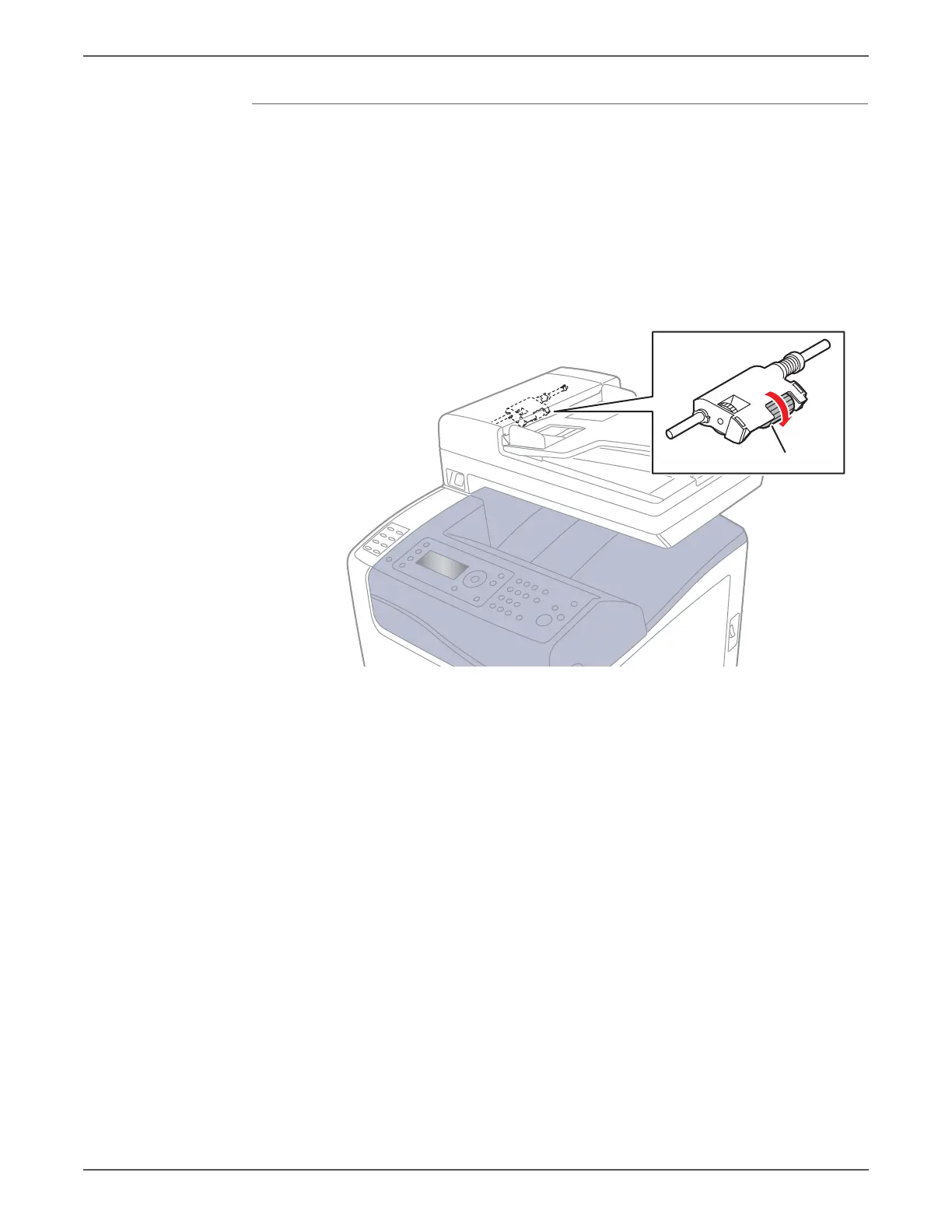

Feed Roller
