Xerox Phaser 6500 Service Manual

8-26 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

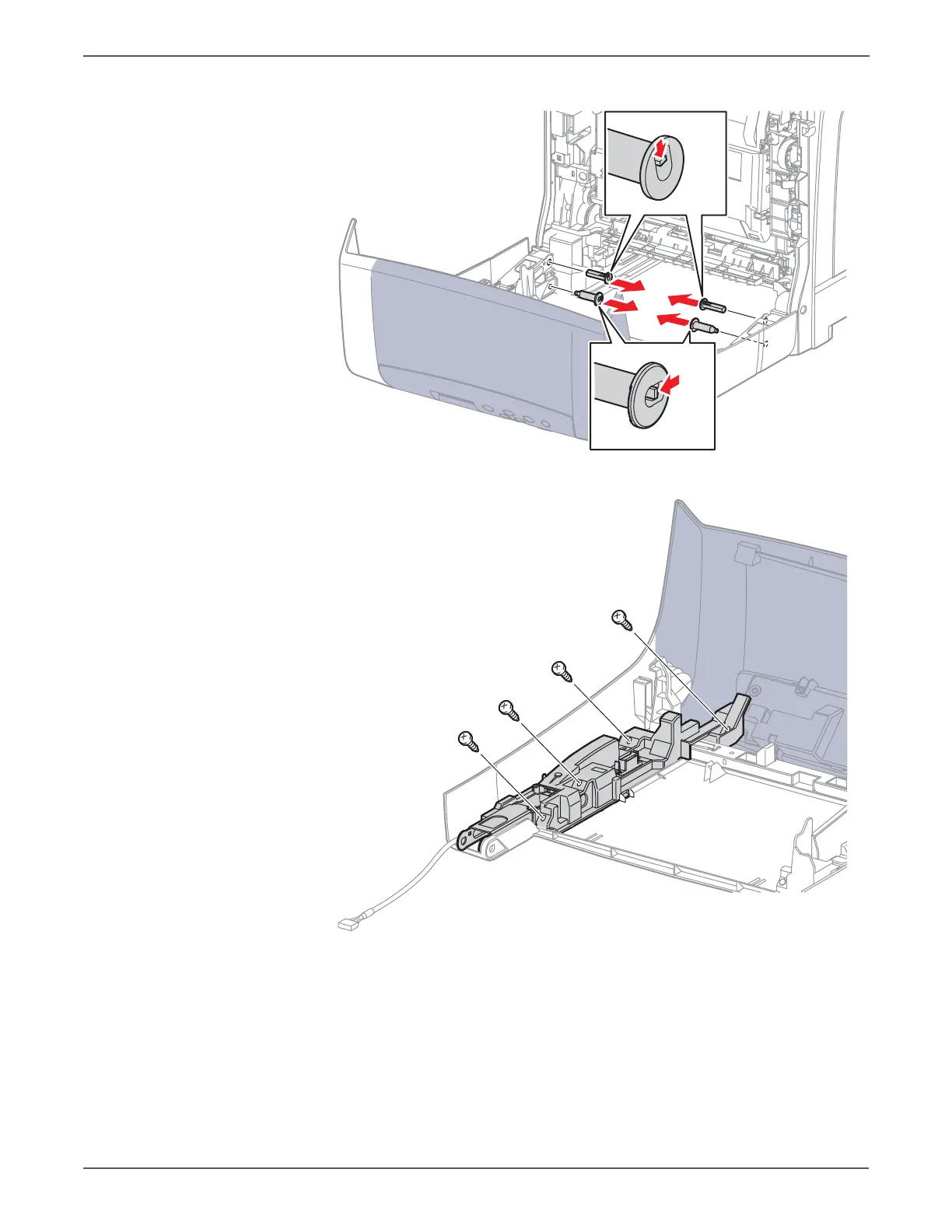

5. Release the hook that secures the Link Pivot Shaft and remove it.
6. Remove four screws that secure the right front holder to the Front Cover;
s6500-195
s6500-201
