8-70 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

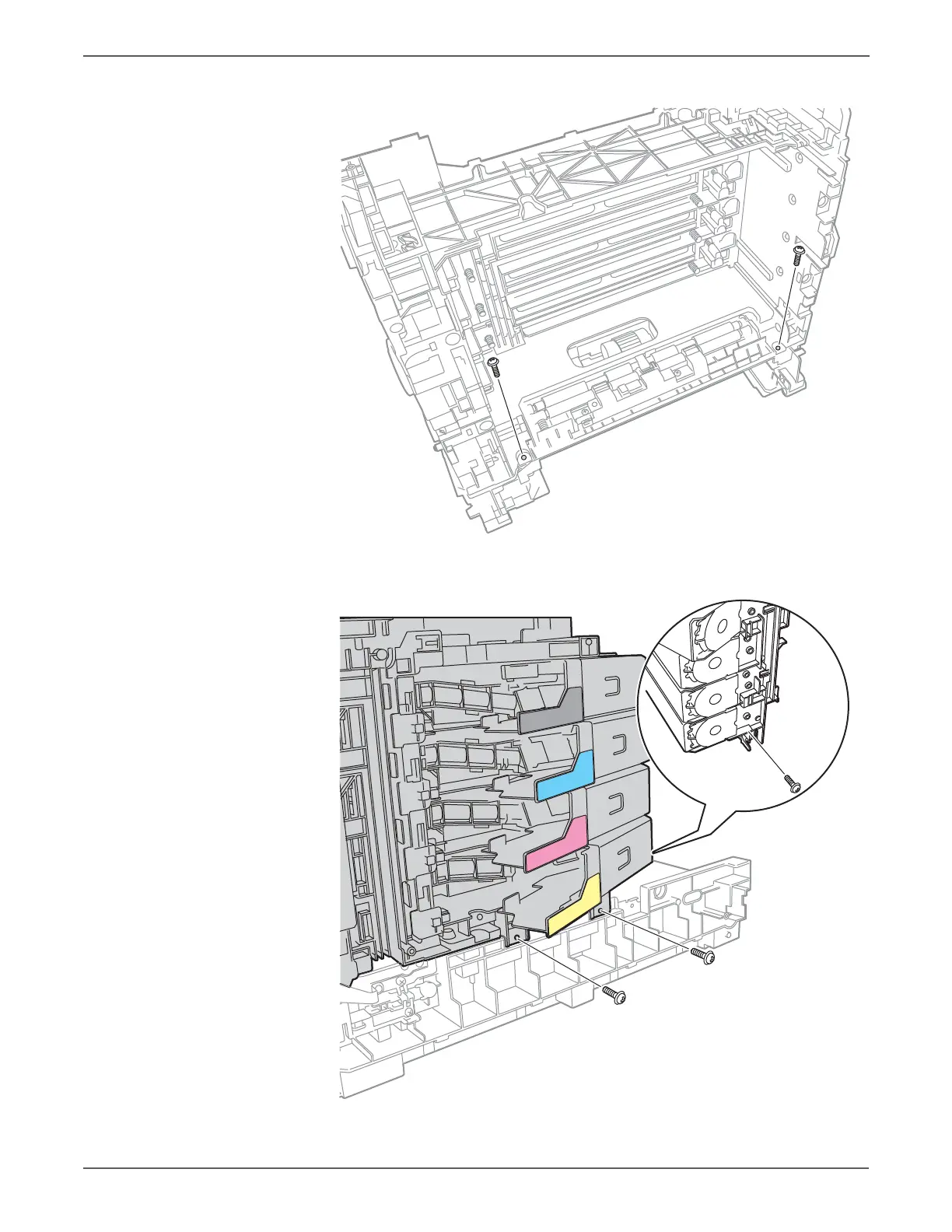

21. Remove two screws (silver, tap, 8mm) that secure the front of the frame.
22. Remove two screws (silver, tap, 8mm) that secure the bottom and 1 screw
(silver, M4, 6mm) that secures the rear of the Dispense Assembly.
s6500-236
s6500-235
