Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-89

Service Parts Disassembly

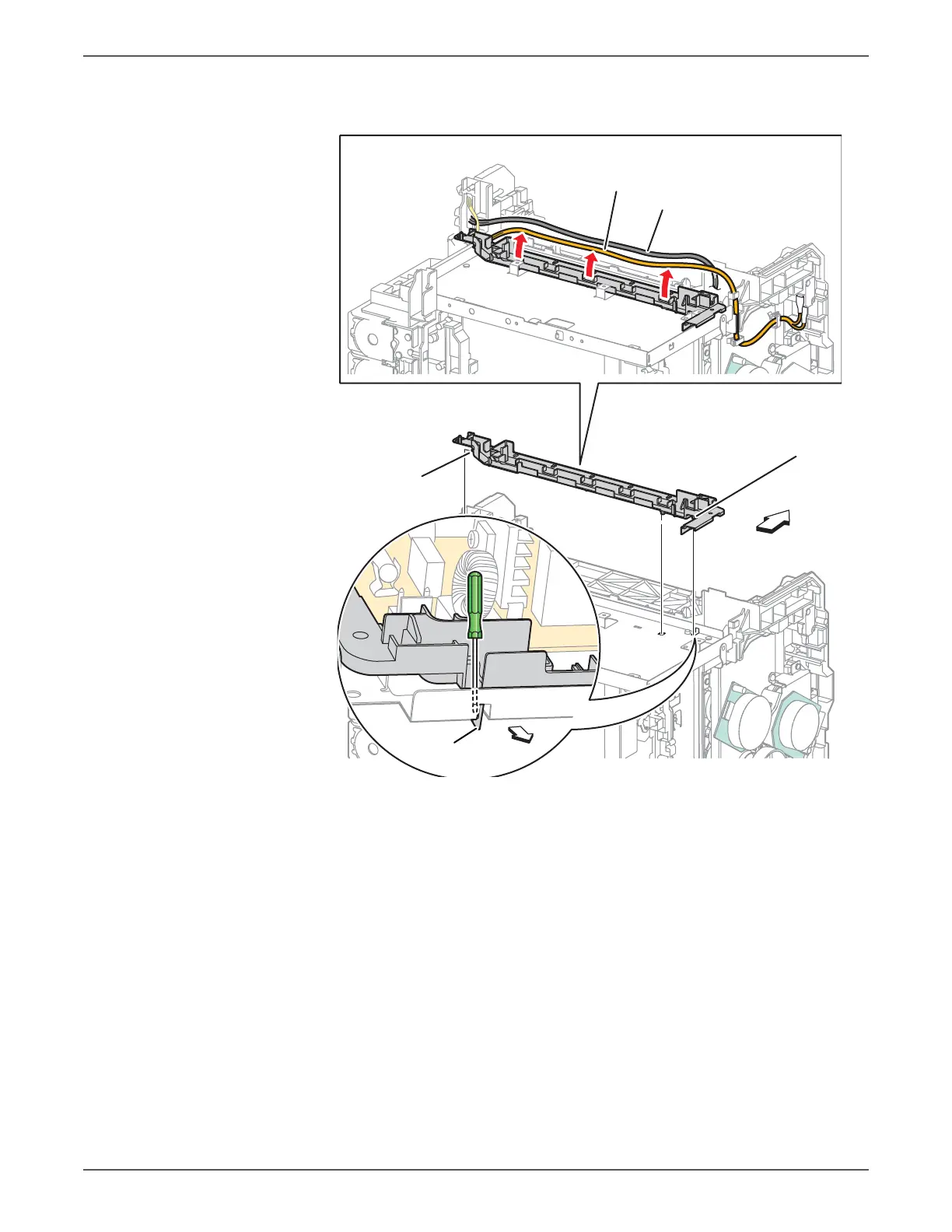

16. Remove the Fuser and Interlock Switch harnesses from the guide.

17. Release the latch to remove the guide from the LVPS Frame.

s6500-26

Fuser2 Harness

Interlock Harness

Front

Hook

Tab

Hook

Front
