Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-103
Service Parts Disassembly

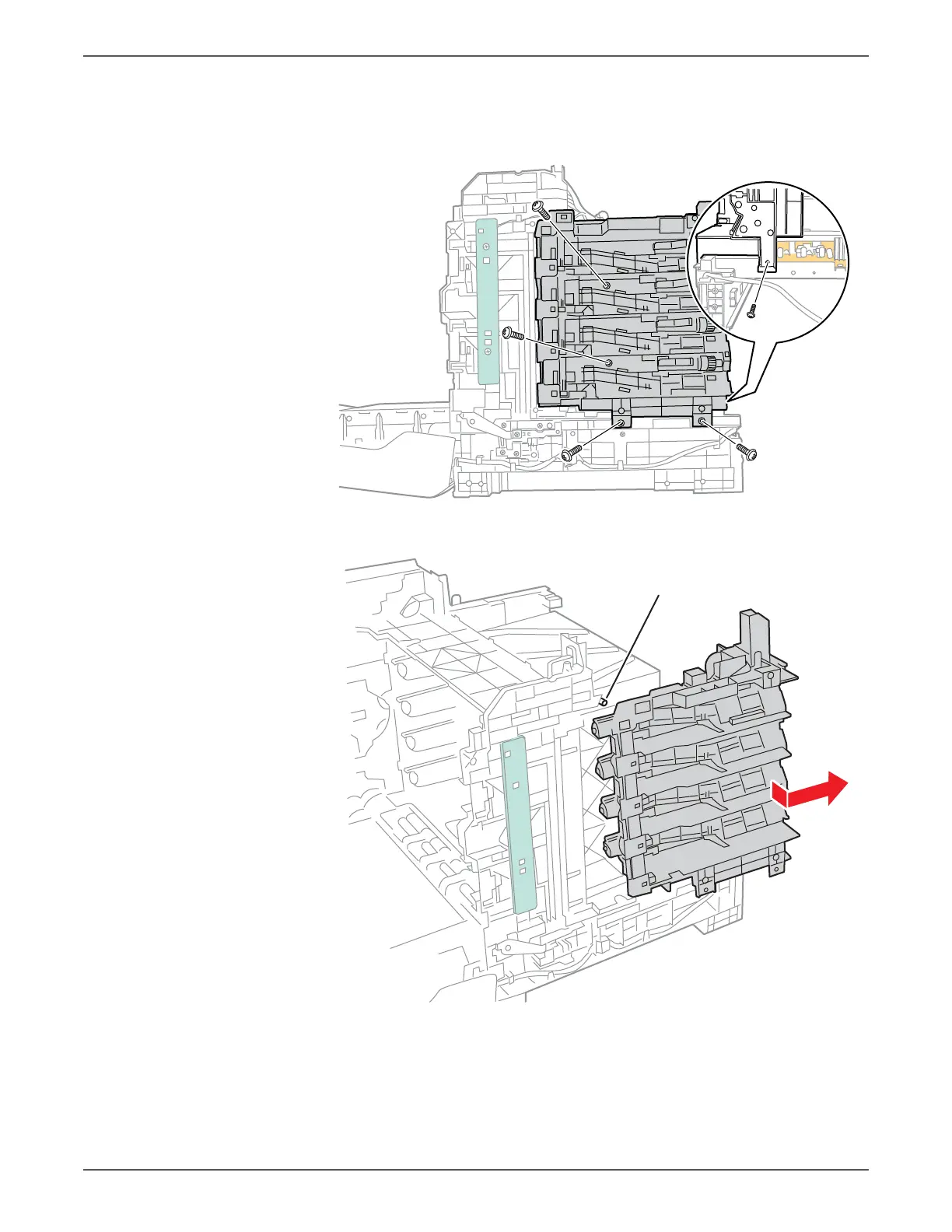

20. Remove the four screws (silver, tap, 8mm) that secure the Dispenser Assembly
to the chassis.
21. Remove the screw (silver, 6mm) that secures the rear side of the Dispenser
Assembly to the chassis.
22. Disengage the Dispenser Assembly from the boss on the chassis, and move
the Dispenser Assembly out and rearward to remove it.
Replacement Note
Align the boss on the chassis with the hole in the Dispenser Assembly before
tightening the screws.
s6500-281
s6500-282
Boss

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
