Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-129
Service Parts Disassembly

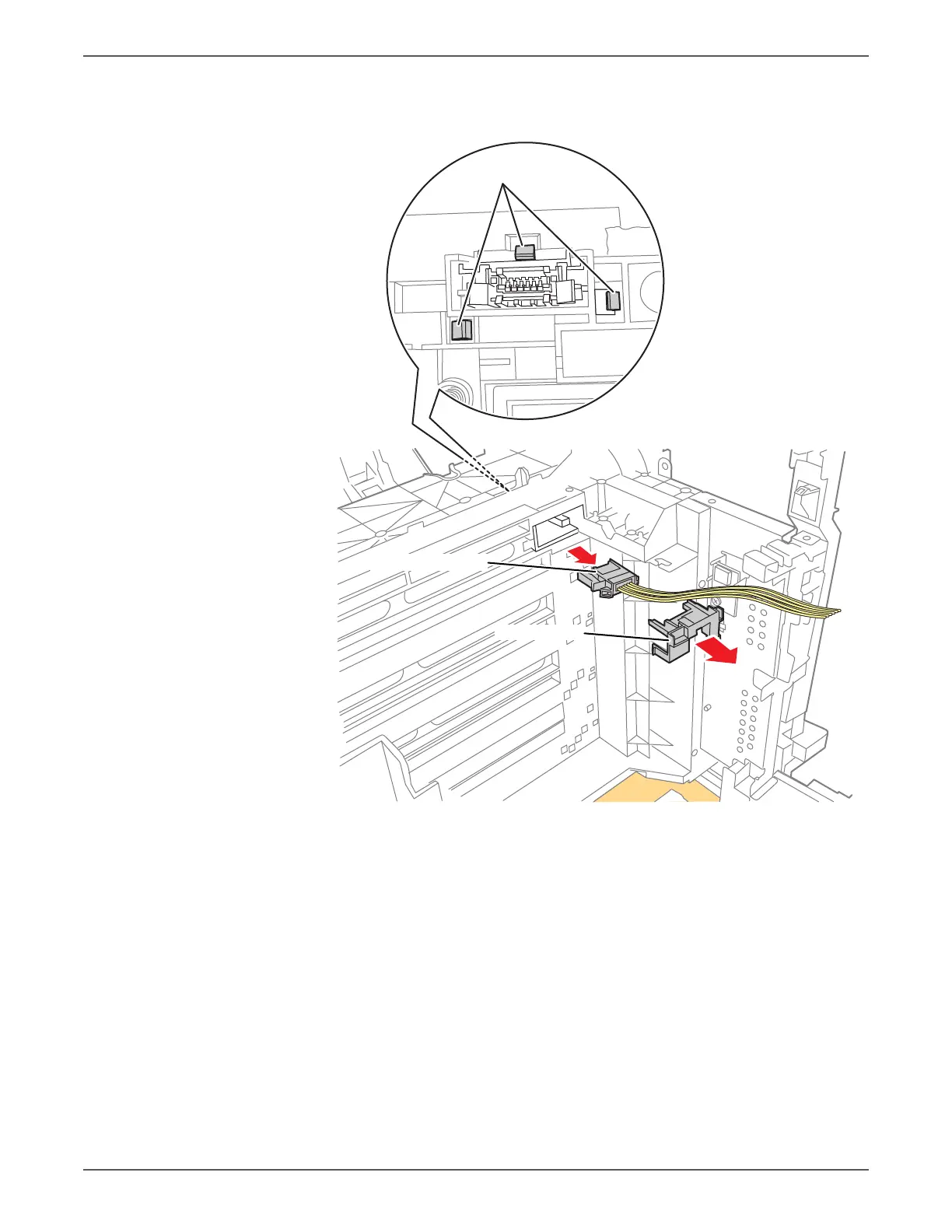

4. From the front of the chassis, release the right, top, and left hooks on the
Imaging Unit socket retainer, then remove the retainer from the rear of the
chassis.
5. Lift the Imaging Unit socket to the top of the opening, and from the rear, pull
the socket from the chassis opening.
Replacement Note
When installing the Imaging Unit socket:
6. Insert the socket into the chassis opening, making sure the square
notches on the sides of the socket are seated over the posts in the
opening.
7. Insert the socket retainer. Make sure all the latches engage and the
rear of the retainer is flush with the chassis.
Imaging Unit Socket
Socket Retainer
s6500-504
Hooks

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
