8-132 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

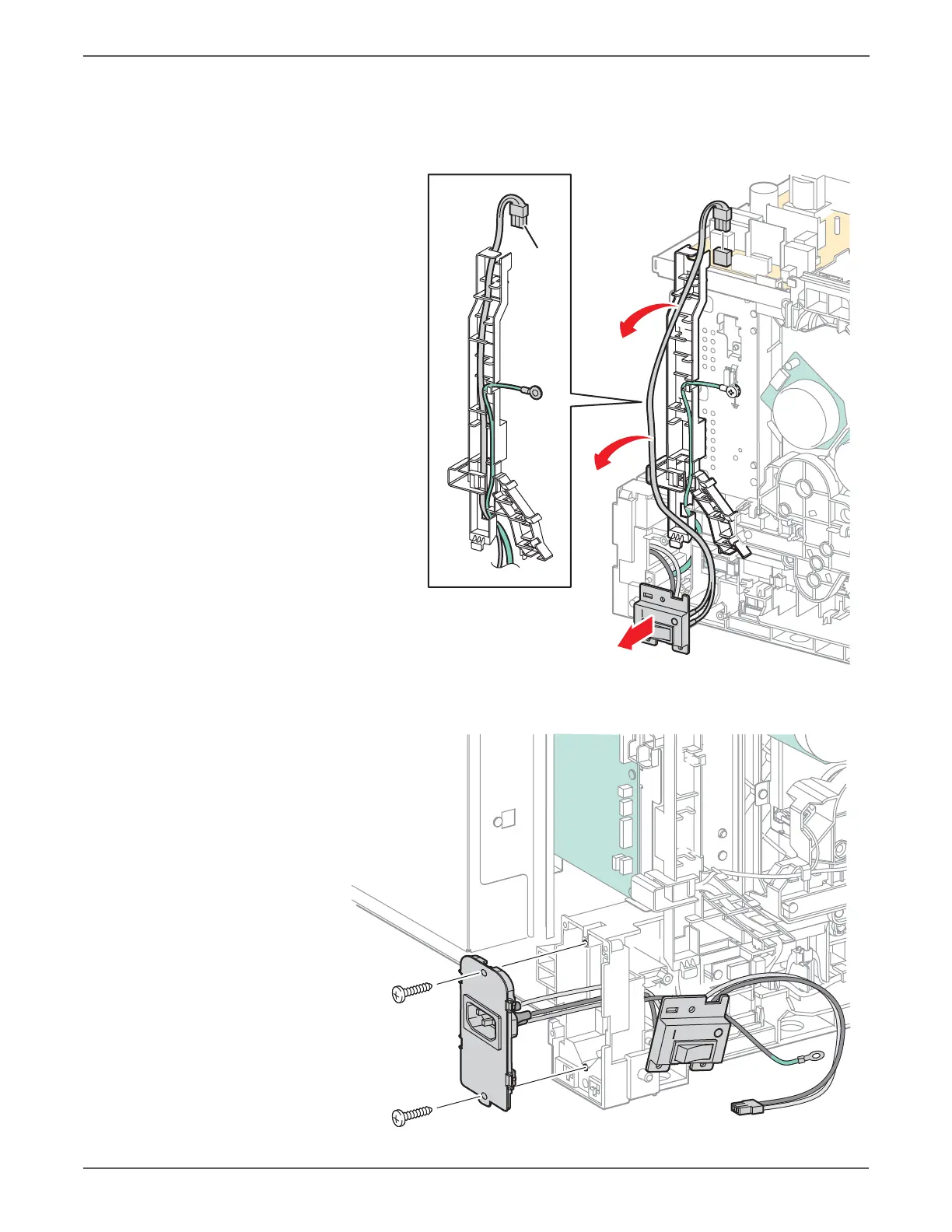

10. Disconnect P/J48 from the LVPS.
11. Remove the screw (silver, with washer, 6mm) that attaches the grounding
terminal to the frame.
12. Release the Power Switch Harness from the AC harness guide.
13. Remove the two screws (silver, tap, 12mm) that secure the Inlet Cover to the
printer frame.
s6500-315
P/J48
s6500-317
