8-198 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

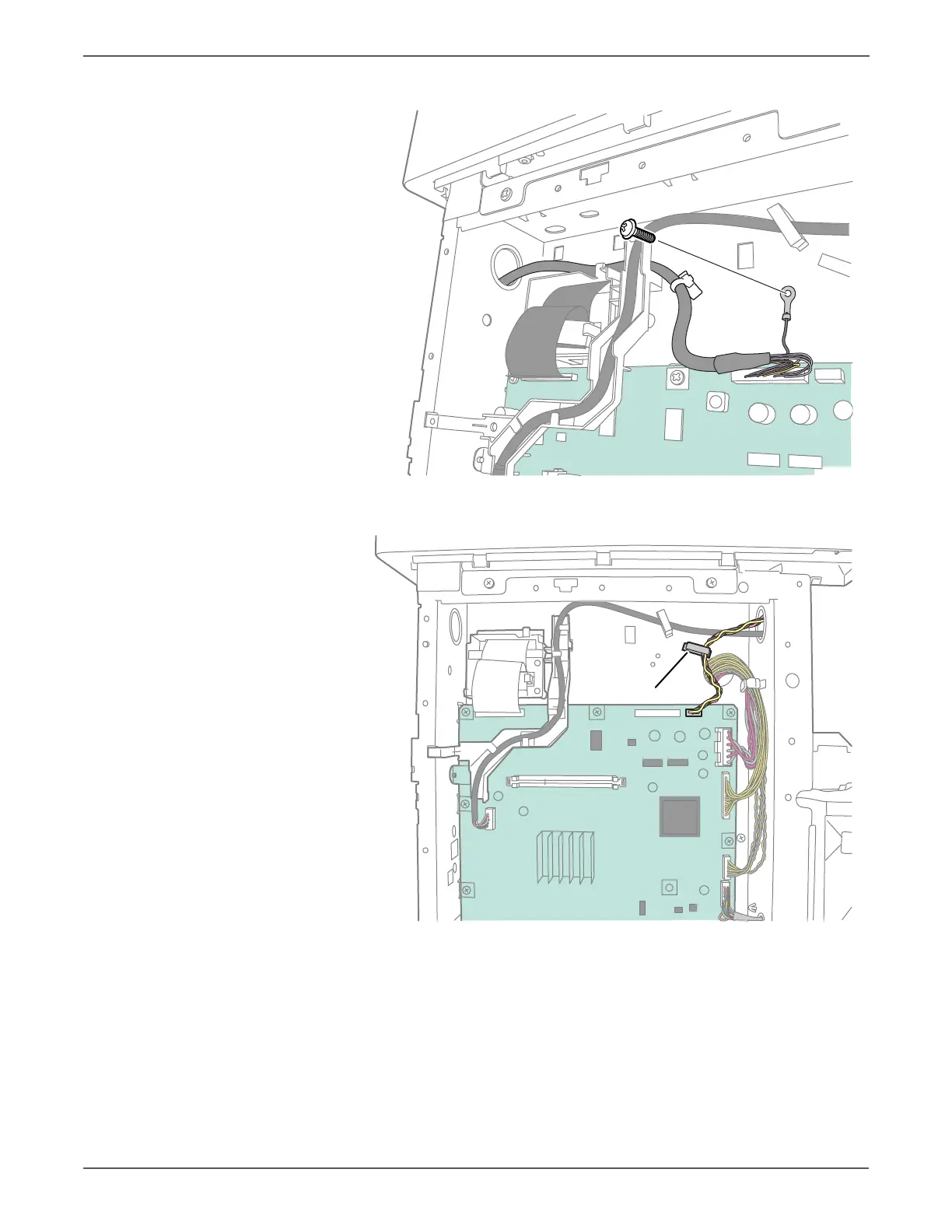

15. Remove the screw (silver, 6mm) that secures the ADF Assembly ground wire.
16. Disconnect P/J1002 from the Image Processor Board and release the IIT Sub-
Assembly harness from the clamp. Pull the harness through the hole.
s6500-382
s6500-384
Wire Clamp
http://www.manuals4you.com
To Next Page
