Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-23
Theory of Operation
• Feed Solenoid
The Feed Solenoid, when activated, releases the gear on the Feed Roller shaft.
The gear engages with the Feed Roller Drive to rotate the Feed Roller.
• Feed Roller
When the Feed Solenoid operates, it allows the Feed Roller to rotate and feed
the paper.

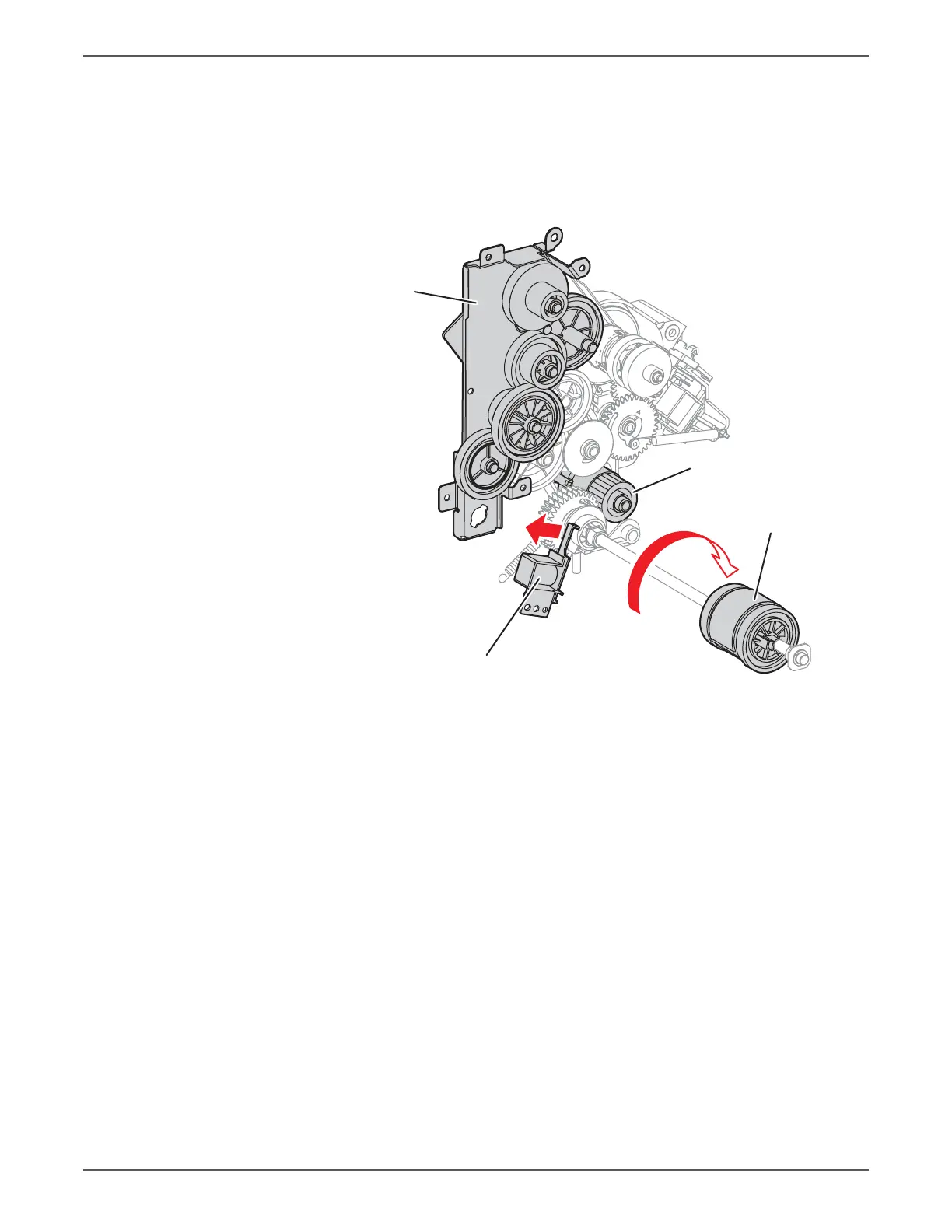

s6500-039
Feed Roller
Feed Solenoid
Feed Roller Drive
Main Drive
To Next Page
