2-26 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation

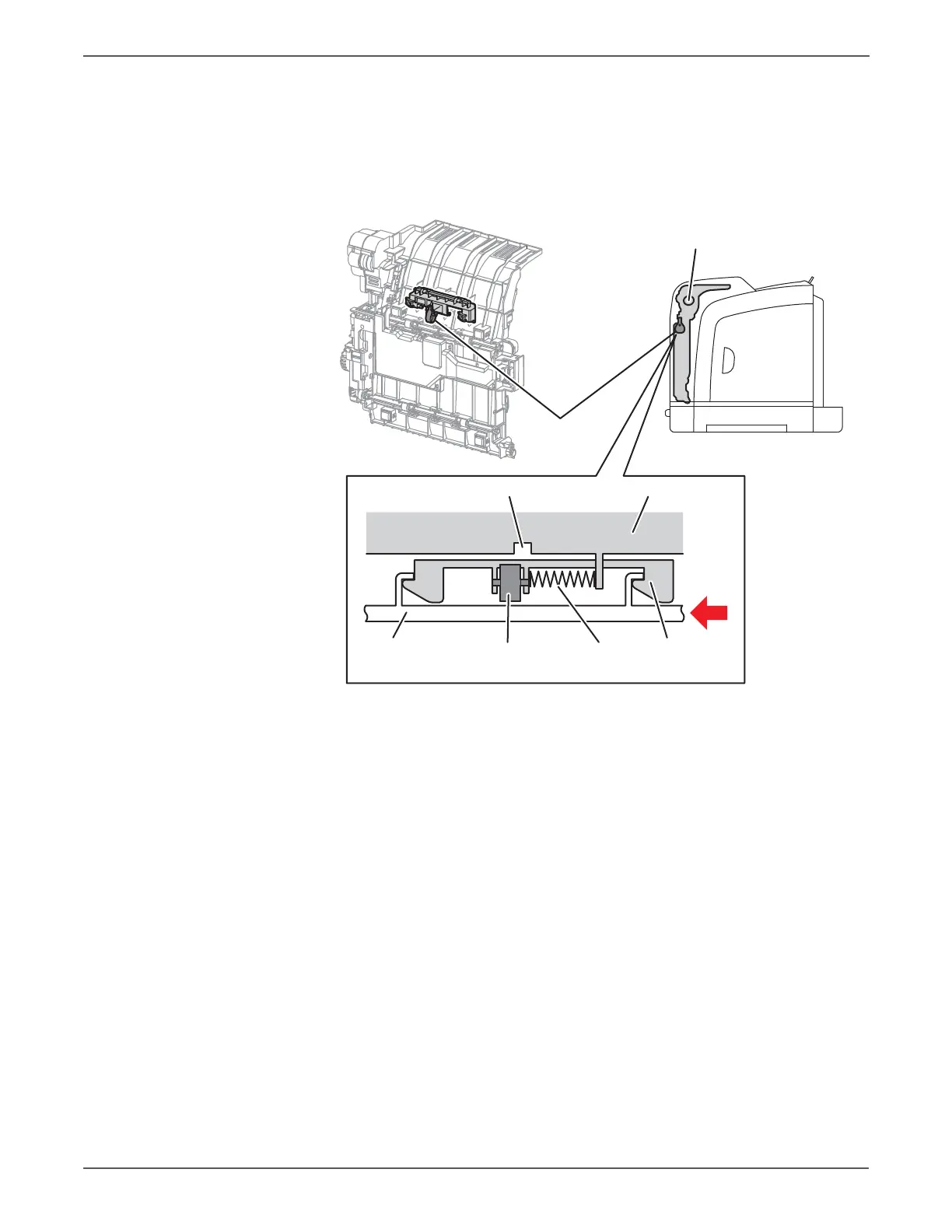

The Duplex Unit attaches to the Front Cover by a weighted latching mechanism.
The latch maintains it’s orientation to the Front Cover as the cover is opened and
closed. With the Front Cover open, the latch follower is released from the locking
slot allowing removal of the Duplex Unit by pushing the Front Cover release
button.
s6500-042
DuplexSlot
Duplex Latch
Spring
Latch Front
Duplex Latch
Duplex Latch
Follower
Duplex Follower
Latch
Side Button
