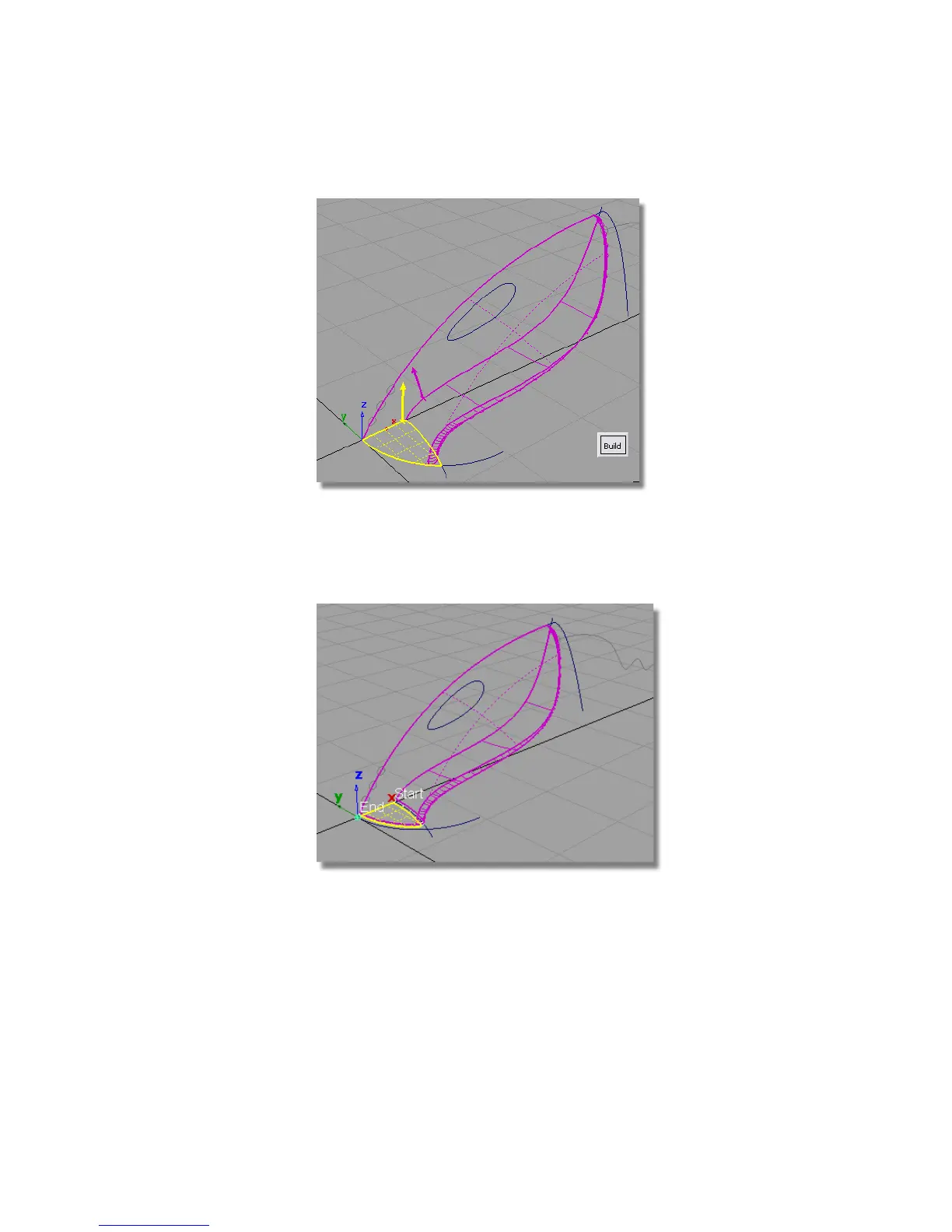

The yellow arrow needs to point upwards towards the inside of the
vacuum body. If it is pointing downwards, out of the surface, click the
arrow to reverse it.
9 Click Build.
The chordal fillet surface is created, and the surfaces trimmed to create
a smooth, continuous exterior.
10 Choose Pick > Nothing to deselect all the surfaces.
Part 3: Surface Fillet | 321
