Monitoring
200
Instructions for use Zeus Infinity Empowered SW 2.n
Patient monitoring and the hemodynamic modules
are largely protected against high-frequency inter-
ference which may be caused by defibrillations, HF
surgery devices or by 50/60 Hz power current inter-
ference. The pressure transducers recommended
on the List of Accessories protect patients during
HF surgery and protect against burns during defi-
brillation. If non-approved pressure transducers are
used, this protection is no longer guaranteed.
Note about HF surgery
To ensure the safety of patient and personnel and
to reduce interference from high-frequency signals,
follow safety instructions during HF surgery.

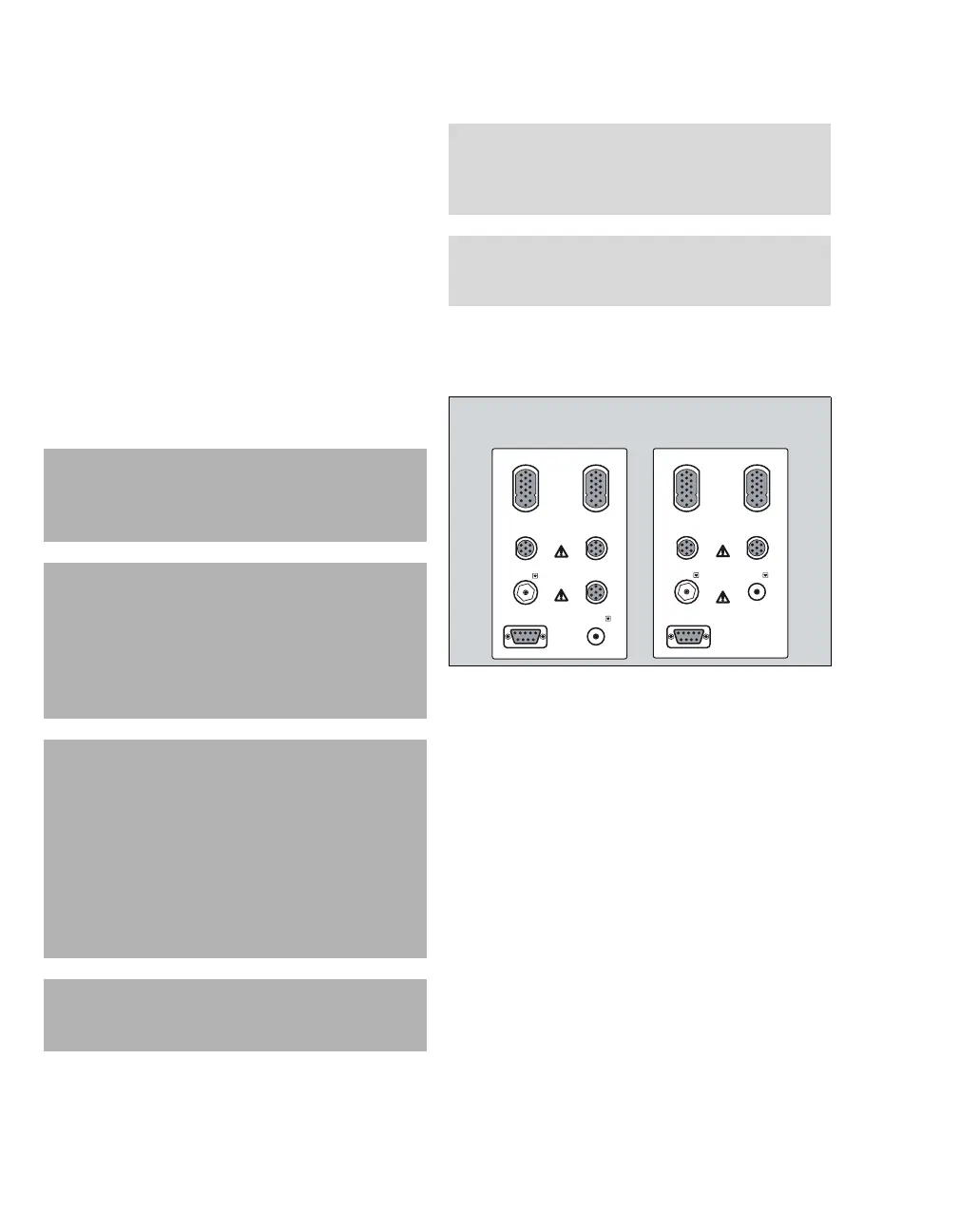

Connection for ECG accessories
A For the display of 3, 5 or 6 ECG leads, different
cables can be connected to the MULTIMED
connection on the Zeus IE.
– MULTIMED 5 cable
– MULTIMED 6 cable
– MULTIMED PLUS OR cable
WARNING
To increase performance and to reduce the
risk of burns, always use the accessories pro-
vided for HF surgery.
WARNING
To prevent the risk of burns, keep sensors and
pressure transducers (ECG, temperature,
pressure, SpO
2, BISx) and their associated ca-
bles away from the operation site, the back
electrodes of the electrosurgical unit and the
grounding.
WARNING
Always use a high-frequency adapter block
(ESU filter) from Dräger or a MULTIMED Plus
OR cable with compatible electrode cables.
Doing so reduces high-frequency interference
and protects the patient against burns that
may be caused by voltage being emitted by
the high-frequency surgery device. For better
performance, set the ECG filter option to
"ESU".
WARNING
Pacemaker detection is not available if the
ESU filter or MULTIMED Plus OR cable is used.
NOTE
For HF surgery, the heart rate should be deter-
mined from the SpO2 signal instead of the
ECG signal.
NOTE
If using temperature sensors (rectal, esophageal),
they must have a protective sheath.
185
A
optionally without
SmartPod SpO
2
A
