Instructions for use Zeus Infinity Empowered SW 2.n 201
Monitoring

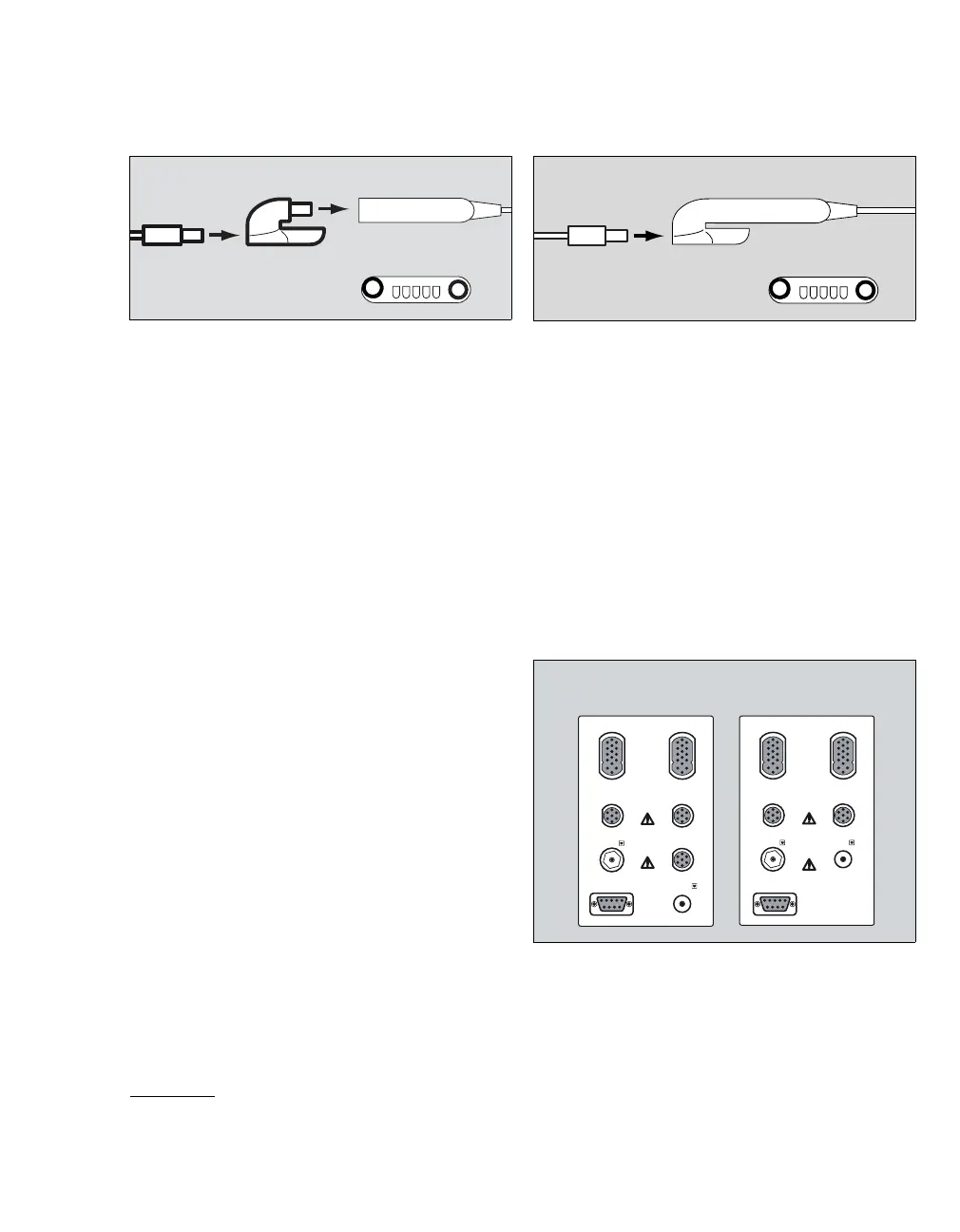

Connecting MULTIMED 5/6 cable
B MULTIMED cable
C ESU block for protection from interference due
to high-frequency surgery
D ECG cable (3, 5 or 6 leads) for connection to the
electrodes applied to the patient
E Connection socket for temperature cable
Two temperature sensors may be connected
via a Y-cable.
F Connection socket for SpO
2 cable*
1 Insert white ECG standard lead wire set (D) into
the ESU block (C). If a MULTIMED 5 cable is
used, leave the V+ connection vacant.
2 Connect ESU block (C) to the MULTIMED
cable (B).
5-pin and 6-pin ESU blocks are available.
3 All electrode inputs must be covered.
Use ESU block during HF surgery only.
Connecting MULTIMED PLUS OR cable
G MULTIMED PLUS OR cable with integrated
ESU block
H ECG cable (3, 5 or 6 leads) for connection to the
electrodes applied to the patient
I Connection socket for temperature cable
Two temperature sensors may be connected
via a Y-cable.
J Connection socket for SpO
2 cable*
z Insert white ECG standard lead wire set (D) into
the MULTIMED PLUS OR Pod (C).
Connection for NIBP accessories
z Press the plug of the NIBP hose firmly into the
NIBP socket (A) at the connection field of the
hemodynamic monitoring on Zeus IE and con-
nect the other end of the hose to the connection
on the cuff.
142
* optional for measurement without SpO2 SmartPod
B
C
D
E
F
143185
G
H
I
J
A
optionally without
SmartPod SpO2
A
