Instructions for use Zeus Infinity Empowered SW 2.n 207
Monitoring
Connection for anesthesia effect
monitoring

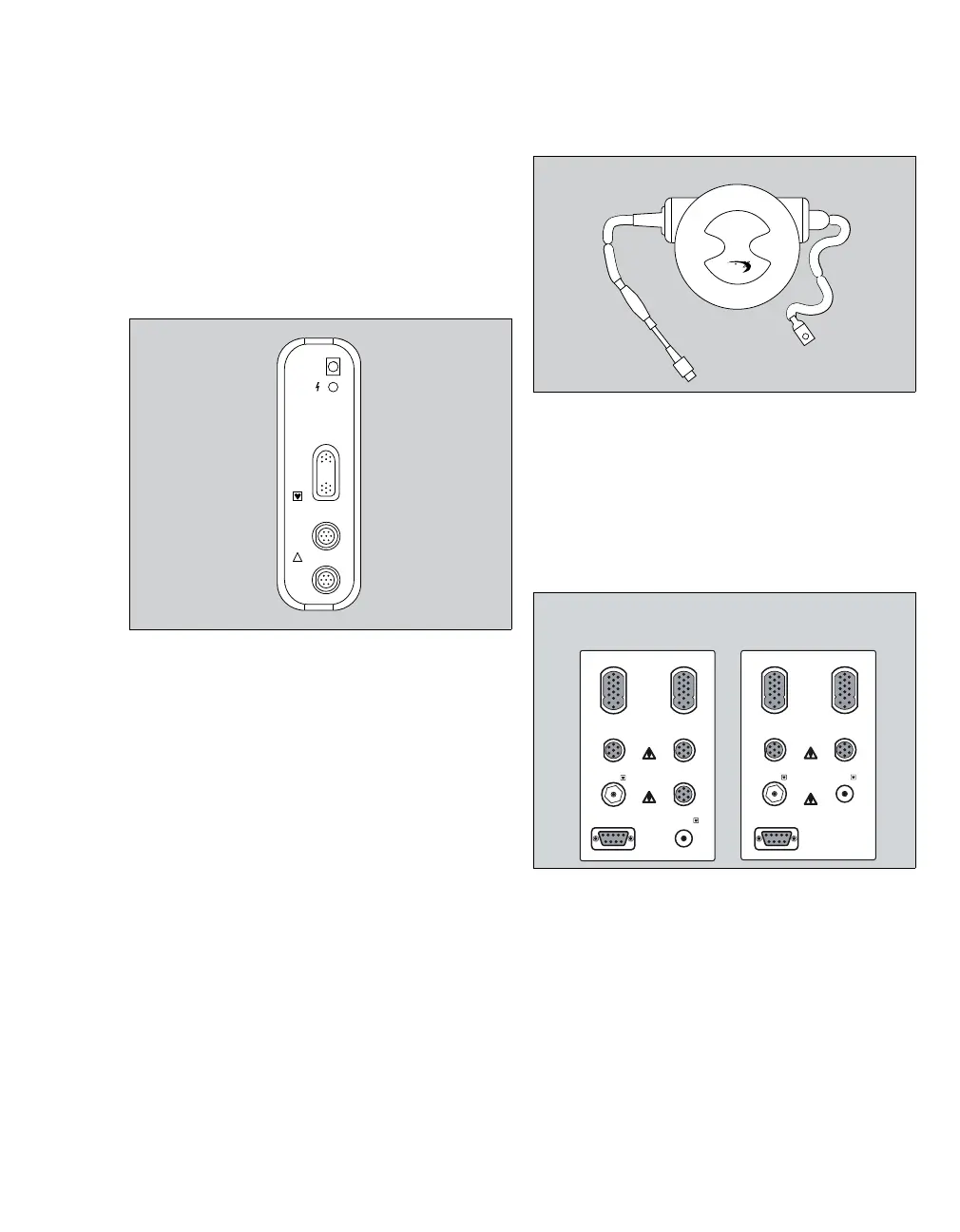

Trident and BisX pods are connected to the
Aux/Hemo 2/3 connections on Zeus IE connection
field, see page 197.
Trident NMT pod
A Covered connection, currently no function
B LED for displaying activated stimulation
C Connection for NMT accessories: accelerome-
ter, electrodes
D Socket for BISx pod
E To the Zeus IE connection field (Pod Com ca-
ble)
Infinity BISx pod
F Pod Com cable to the Zeus IE connection field
or to the Trident pod
G Sensor cable for connecting the BIS sensor
Connection for synchronization of a
defibrillator
For synchronization, a defibrillator can be con-
nected to the Sync. connection (A) on the Zeus IE
connection field.
279
!
A
B
C
D
E
276185
BIS
X
F
G
A
optionally without
SmartPod SpO
2
A
