Monitoring
206
Instructions for use Zeus Infinity Empowered SW 2.n

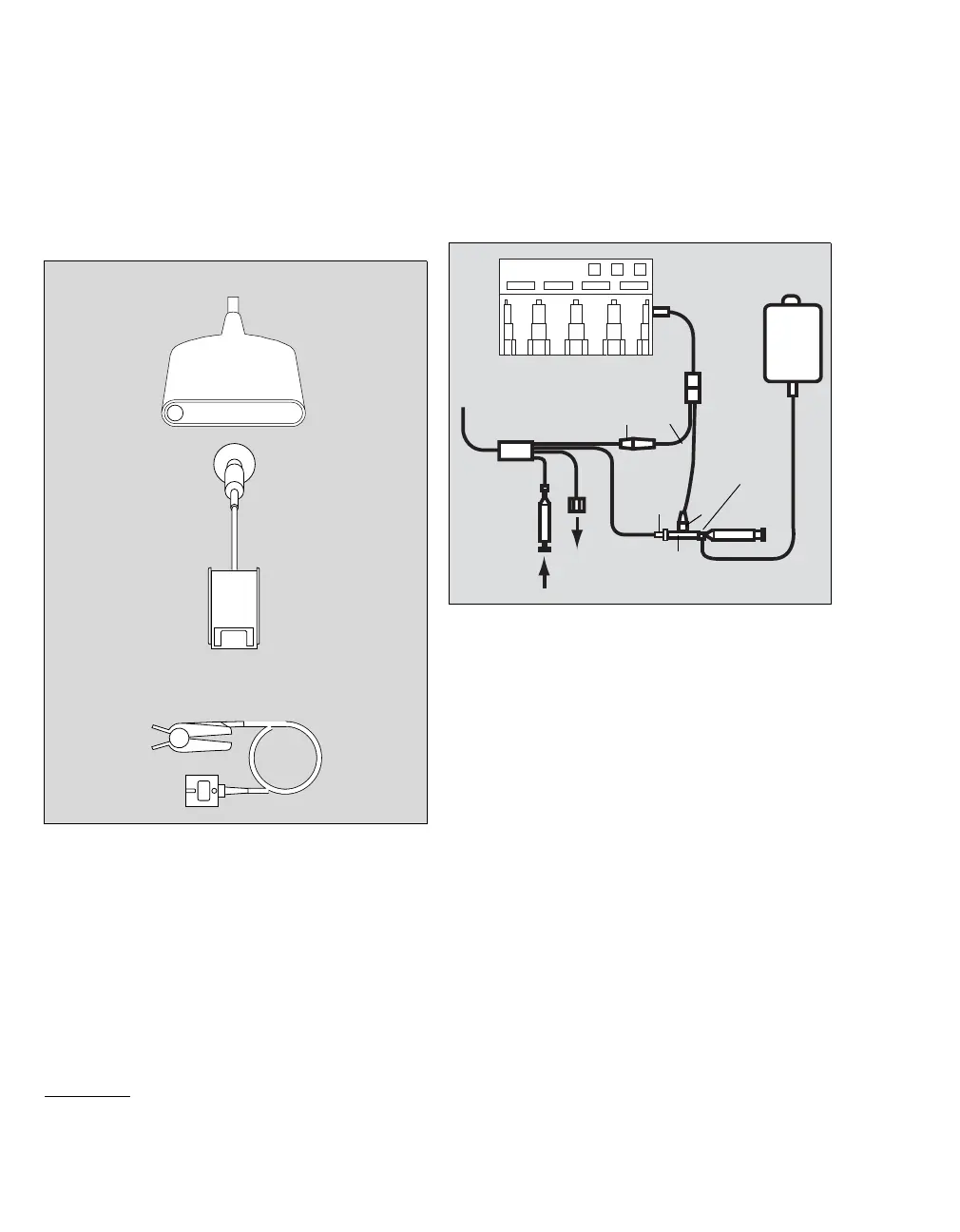

SpO2 measurement without SmartPod SpO2*
The SpO
2 measurement is carried out using the
MULTIMED connections.
z Select the accessories (connecting cable and
SpO2 sensor) based on the technology used.
E MULTIMED cable
F Connecting cable
G SpO2 sensor
C.O. measurement connection
The accessory for C.O. measurement can be con-
nected to all hemodynamic modules. The connec-
tion is located on the right side for all modules.
A Injectate
B Injectate temperature sensor
C Proximal lumen
D Thermistor T-piece
E Three-way tap
F C.O. Y-cable
G C.O. catheter cable
H Catheter connection
I Thermodilution catheter
J Distal lumen
K Balloon lumen
*optional
152
E
F
G
137
A
BC
D
E
F
G
H
I
J
K
