Instructions for use Zeus Infinity Empowered SW 2.n 211
Monitoring
Preparing ECG
Patients
Careful preparation of the skin as well as correct
positioning of the electrodes is crucial for the gen-
eration of distinct signals.
Electrodes
Both reusable and disposable electrodes are avail-
able.
z Arrange the electrodes in such a way that an
optimum ECG signal is received by Zeus IE.
The amplitude of the P- and T-waves should not
be less than one third of QRS amplitude.
z Position electrodes as far from the operation
site as possible.
Instructions for burns
z Only use sterile electrodes.
z The electrodes must be attached with a water-
tight plaster (approx. 5 cm wide) or with sterile
adhesive tape and protected against liquids.

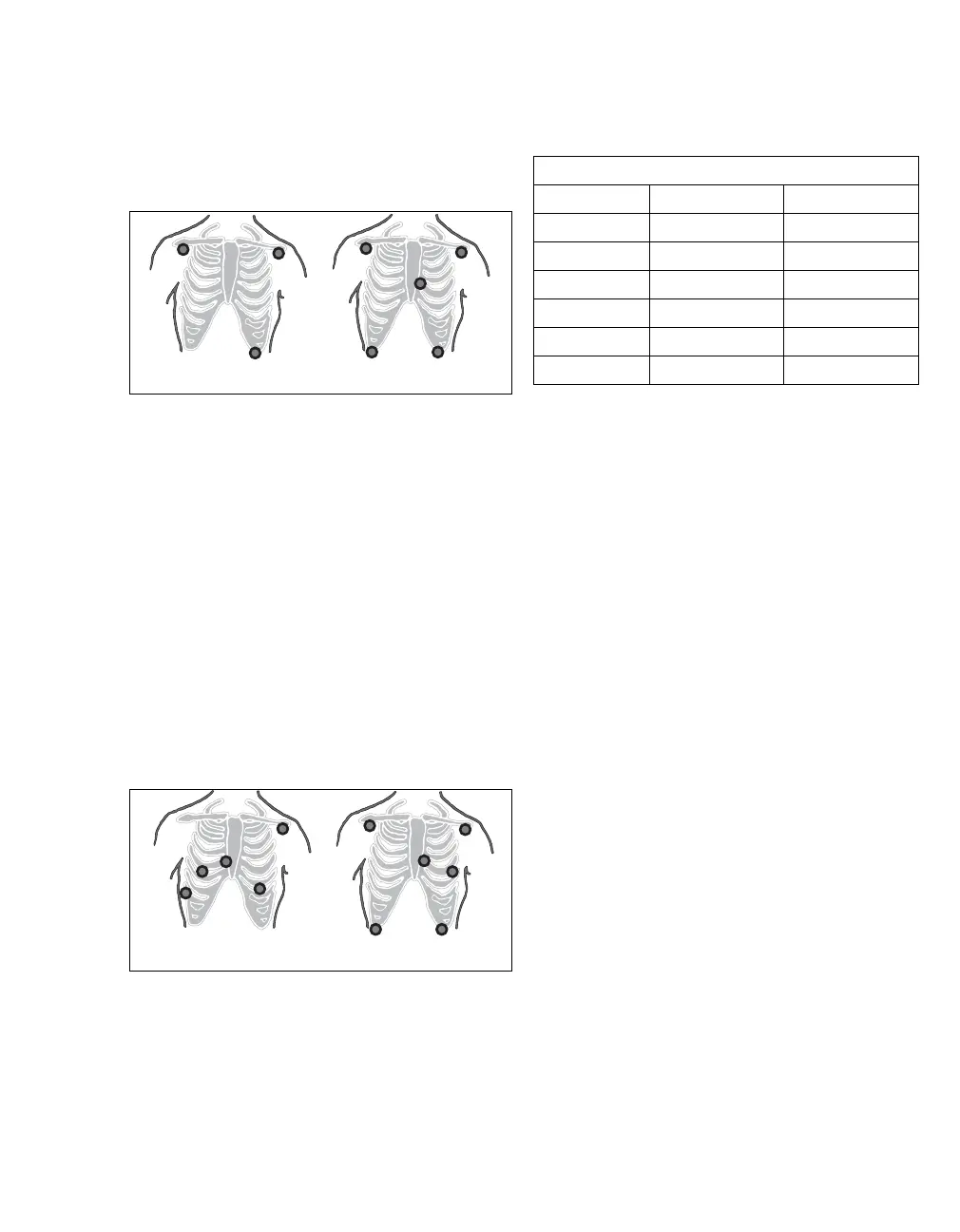

Electrode positioning
217218
3-lead standard / 5-lead standard
5-lead standard / 6-lead for pacemaker
ECG color coding
ECG cable Europe (IEC 1) USA (IEC 2)
LA Yellow Black
LF Green Red
RA Red White
RF Black Green
VWhiteBrown
V+ Gray / white Gray / brown
