Monitoring
242
Instructions for use Zeus Infinity Empowered SW 2.n
If no supramaximal current can be determined for
the current measurement, the device uses 60 mA.
If no reference measure can be determined, a de-
vice-internal reference is used.
Single Twitch
A single pulse is applied. Muscle response to this
pulse is measured and compared with the refer-
ence pulse.
The NMT pod repeats stimulation at the set time in-
terval.
If the value for stimulation current or pulse width is
changed, a new reference value will be determined!
Settings on Zeus IE for Single Twitch
z Select Single measuring mode (K) and confirm
with NMT start button (J).

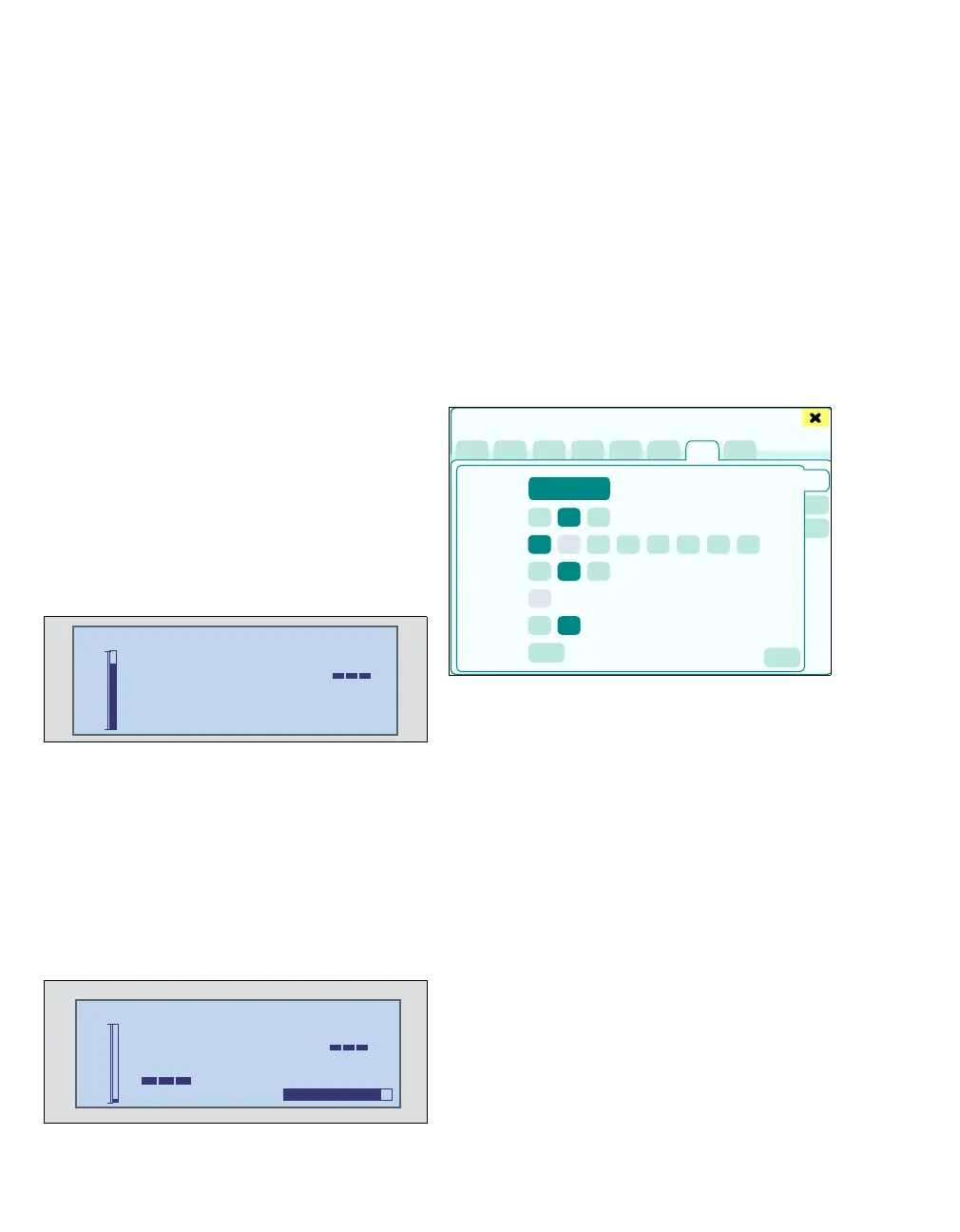

NMT screen display
The parameter box for Single Twitch indicates the
muscle response as a bar graph and as a numerical
value in %.
Example: A display of 90 means that muscle re-
sponse is 90 % of the reference pulse.
Additionally after touching the Display all button
(prerequisite: Display all button has been config-
ured, see page 332):
– Currently set alarm limits
Skin temperature is displayed.
60 seconds after a successful single or TOF meas-
urement, the measured value is deleted.
TOF
Train of Four – A series of 4 pulses is applied. The
number of pulses answered indicates the degree of
muscle relaxation. The NMT pod repeats stimula-
tion at the set time interval.
TOF settings on Zeus IE
z Select TOF measuring mode (L) and confirm
with NMT start button (J).
