Instructions for use Zeus Infinity Empowered SW 2.n 243
Monitoring

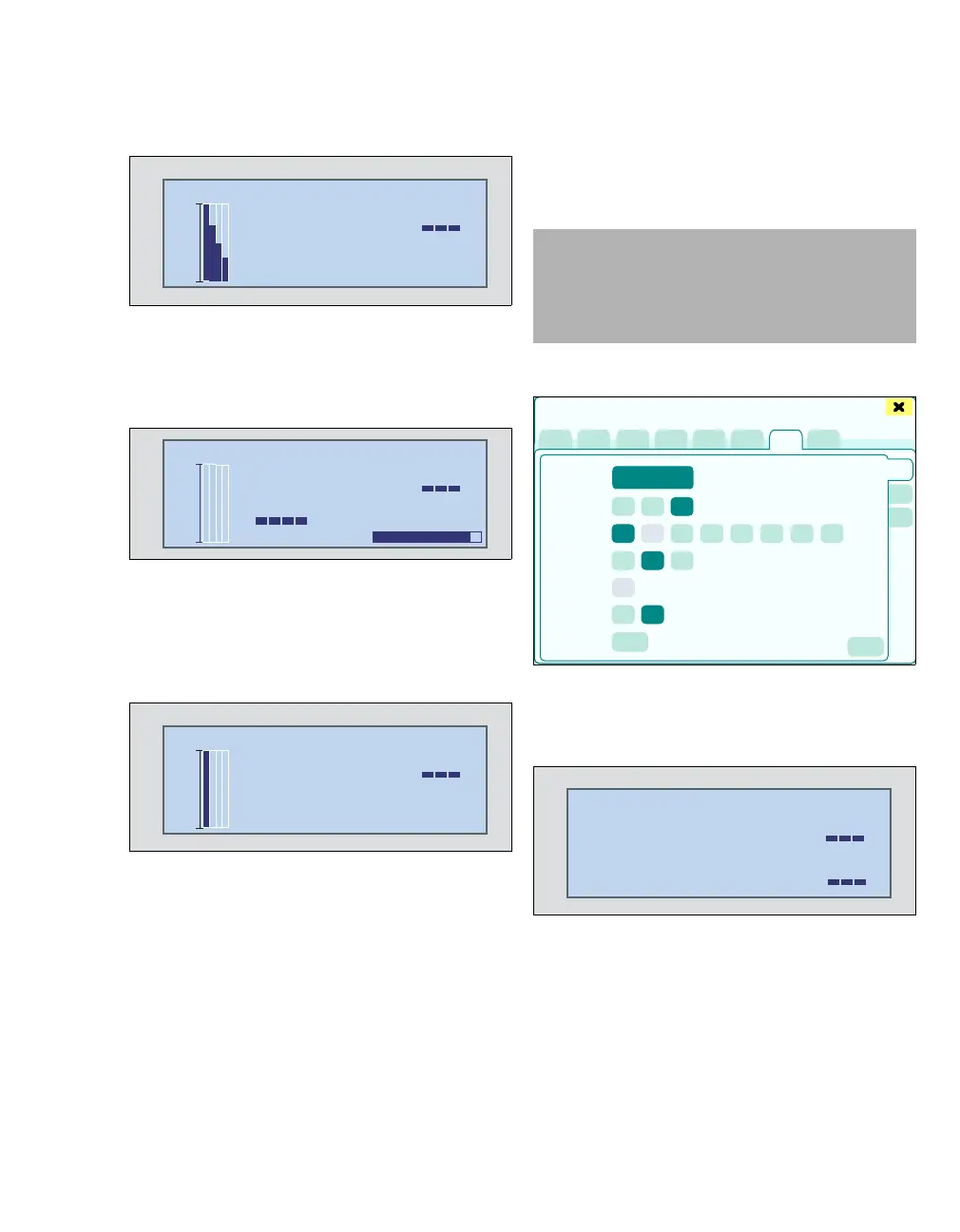

TOF ratio screen display
Muscle response to each individual pulse is meas-
ured and displayed as a bar graph.
The ratio of the fourth pulse to the first pulse, T4/T1,
is displayed as a TOF ratio in %, e.g. 48.
After 15 seconds, the last measured value is de-
leted. The time until the next measurement is dis-
played as a bar graph.
TOF count screen display
If fewer than 4 stimulation pulses are detected, the
TOF count value is displayed, e.g., 1.
TOF count – number of pulses that produced a re-
sponse.
For TOF count, an upper and a lower alarm limit
can be set, see page 163.
PTC (Post Tetanic Count)
A 50 Hz signal is applied for 5 seconds. After a
pause of 5 seconds, there will be up to 20 1 Hz sig-
nals.
PTC settings on Zeus IE
z Select PTC measuring mode (M) and confirm
with NMT start button (J).
PTC screen display
The number of pulses answered is displayed. While
measurement is taking place the measured value is
grayed out.
209208207
100
0
48
4
0
11:38
NMT
%
Ratio
TOF
Tem p ° C
100
0
4
0
NMT
%
Tem p °C
TOF
5
min
100
0
1
4
0
11:39
NMT
%
Count
TOF
Tem p °C
WARNING
Only perform on a patient under sufficient se-
dation when there are no further TOF re-
sponses! PTC stimulation on a conscious pa-
tient is very painful.
488205
Sensors/Parameters
M
J
1
4
0
NMT
Count
%
Tem p °C
PTC
