MPC5553/MPC5554 Microcontroller Reference Manual, Rev. 5
B-2 Freescale Semiconductor

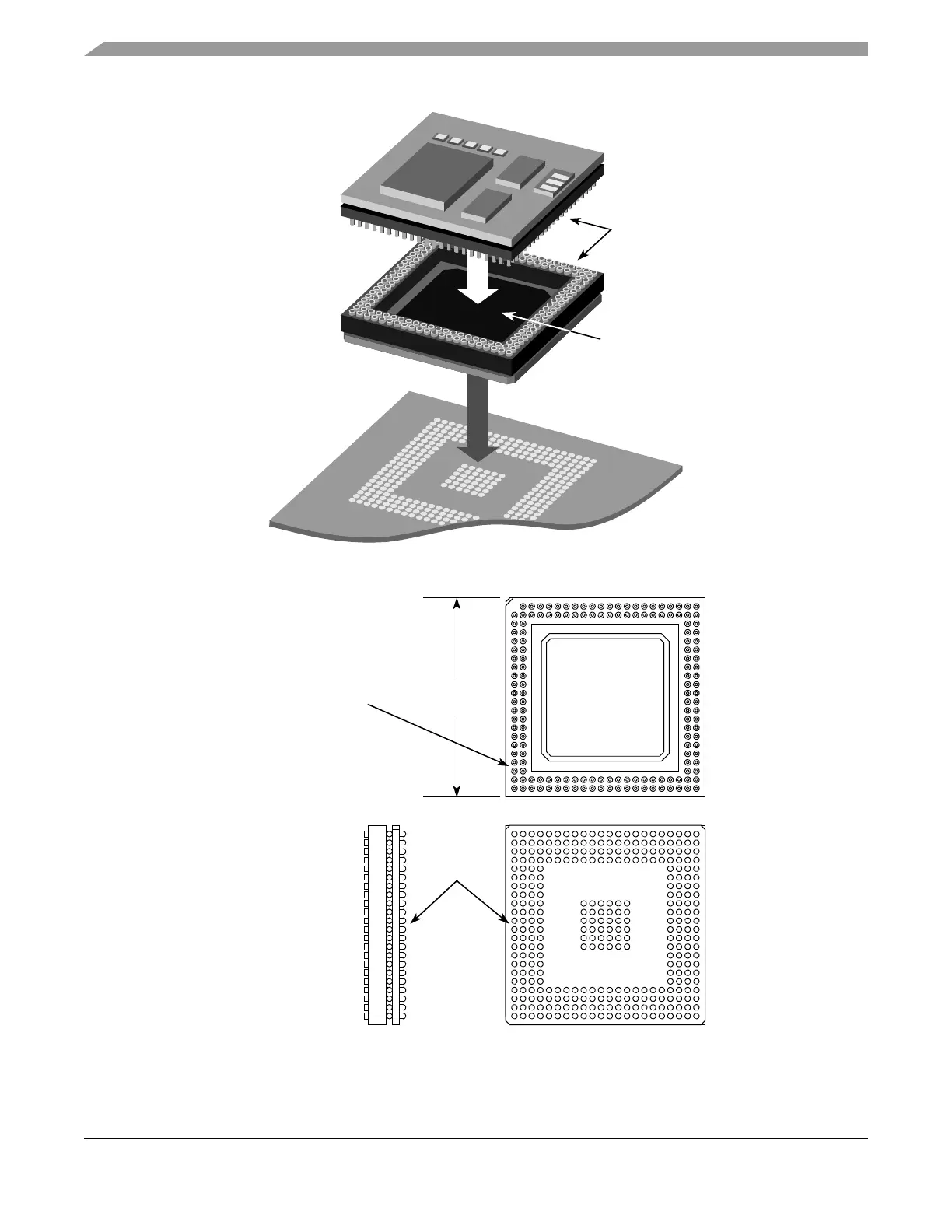

Figure B-1. Calibration Assembly
Figure B-2. VertiCal Base
VertiCal Compliant
Top Board
VertiCal Base
Application
Production PCB
VertiCal Connector
System
Calibration Packaged
MPC5500 Device
• Production packaged sized
23mm
(324 BGA)
calibration board, production
package compatible footprint
• Standardized expansion connector
156 signal, 1mm pitch, balled
surface mount
324 BGA
Footprint
• Calibration address/data bus
bought out on this connector
