8 Frequency Scan Measurement
Meas Setup

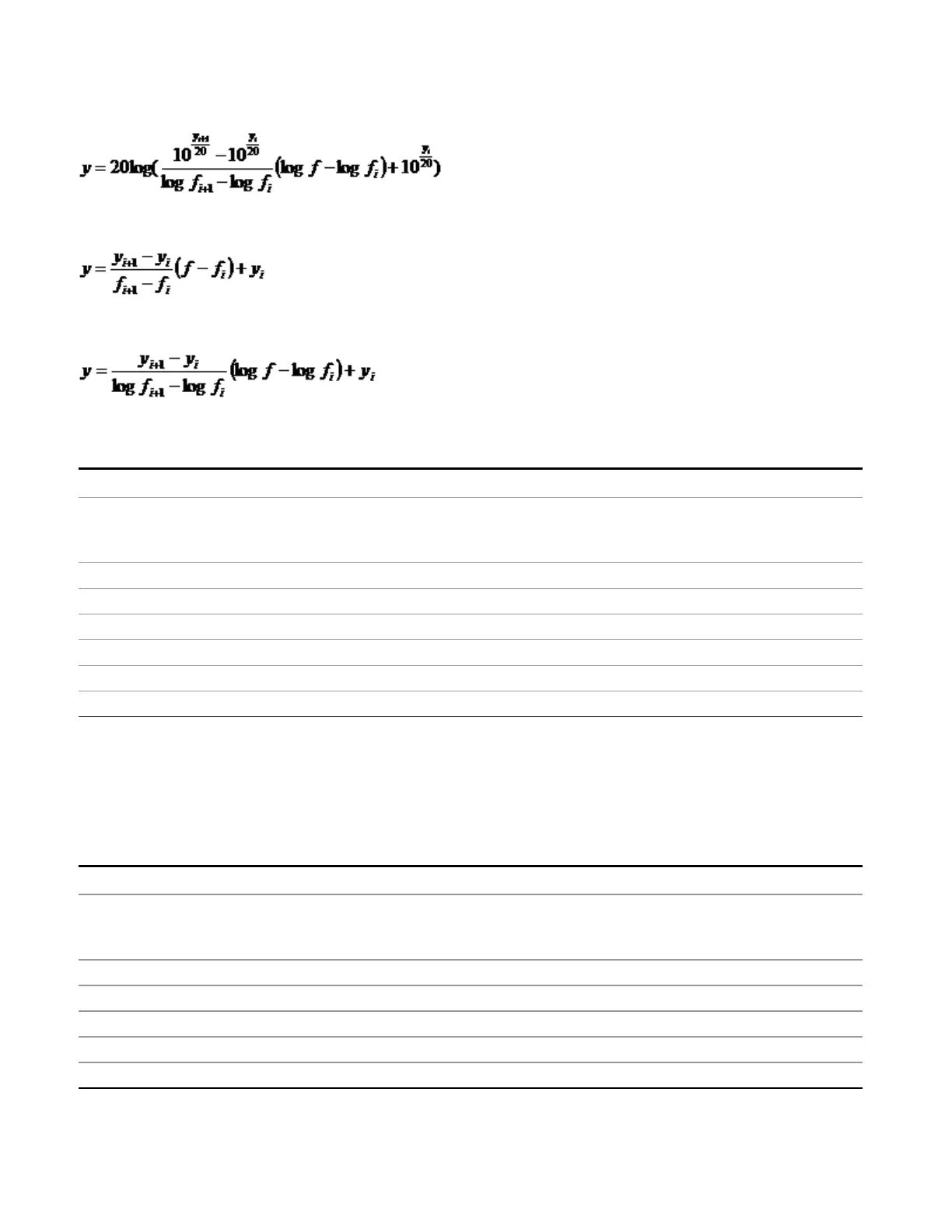

For log amplitude interpolation and linear frequency interpolation, the interpolation is computed as:
For log amplitude interpolation and log frequency interpolation, the interpolation is computed as:
Note that Interpolation modes determine how limit values are computed between points in the limit table.
The appearance of a limit trace is also affected by the amplitude scale, which may be linear or logarithmic.
Key Path
Meas Setup, Limits, Properties, Interpolation
Remote Command
:CALCulate:FSCan:LLINe[1]|2|...|6:CONTrol:INTerpolate:TYPE LOGarithmic
| LINear
:CALCulate:FSCan:LLINe[1]|2|...|6:CONTrol:INTerpolate:TYPE?
Example CALC:FSC:LLIN4:CONT:INT:TYPE LIN Sets limit line 4 frequency interpolation to linear.
Dependencies This key is grayed out if Time is the selected X Axis Units.
Preset Linear, not affected by Mode Preset, preset by Restore Mode Defaults.
State Saved Saved in instrument state.
Range Log|Lin
Initial S/W Revision A.07.00
Amplitude Interpolation
Sets the interpolation to linear or logarithmic for the specified limiting points set, allowing you to determine
how limit trace values are computed between points in a limit table. See "Frequency Interpolation" on page
485 for the equations used to calculate limit values between points.
Key Path
Meas Setup, Limits, Properties, Interpolation
Remote Command
:CALCulate:FSCan:LLINe[1]|2|...|6:AMPLitude:INTerpolate:TYPE
LOGarithmic | LINear
:CALCulate:FSCan:LLINe[1]|2|...|6:AMPLitude:INTerpolate:TYPE?
Example CALC:FSC:LLIN:AMPL:INT:TYPE LIN Sets limit line 1 amplitude interpolation to linear.
Preset Linear, not affected by Mode Preset, preset by Restore Mode Defaults.
State Saved Saved in instrument state.
Range Log|Lin
Initial S/W Revision A.07.00
486 EMI Receiver Mode Reference
