11 APD Measurement
Sweep/Control
Sweep/Control
Displays the menu keys that enable you to control the sweep parameters.
Key Path
Front-panel key
Notes Front panel only.
Initial S/W Revision A.13.00
Pause/Resume
Pauses the automated APD measurement that is initiated by the Start Measure key after the current data
acquisition is complete. When paused, the label on the key changes to “Resume”. Pressing the Resume
key resumes the measurement at the point it was at when paused.
Key Path
Sweep/ Control
Remote Command
:INITiate:PAUSe
Example INIT:PAUS
Dependencies Pause is not available when the automated APD measurement is not running.
Couplings When paused, the label on the key changes to “Resume”.
Initial S/W Revision A.13.00
Key Path
Sweep/ Control
Remote Command
:INITiate:RESume
Example INIT:RES
Dependencies Resume is not available when the automated APD measurement is not running.
Couplings When resumed, the label on the key changes to “Pause”.
Initial S/W Revision A.13.00
Start Measure/ Stop
When this key is pressed, the analyzer executes an automated APD measurement based on the Measure
selection in the Meas Setup menu, i.e. all signals or mark signals, and then returned.

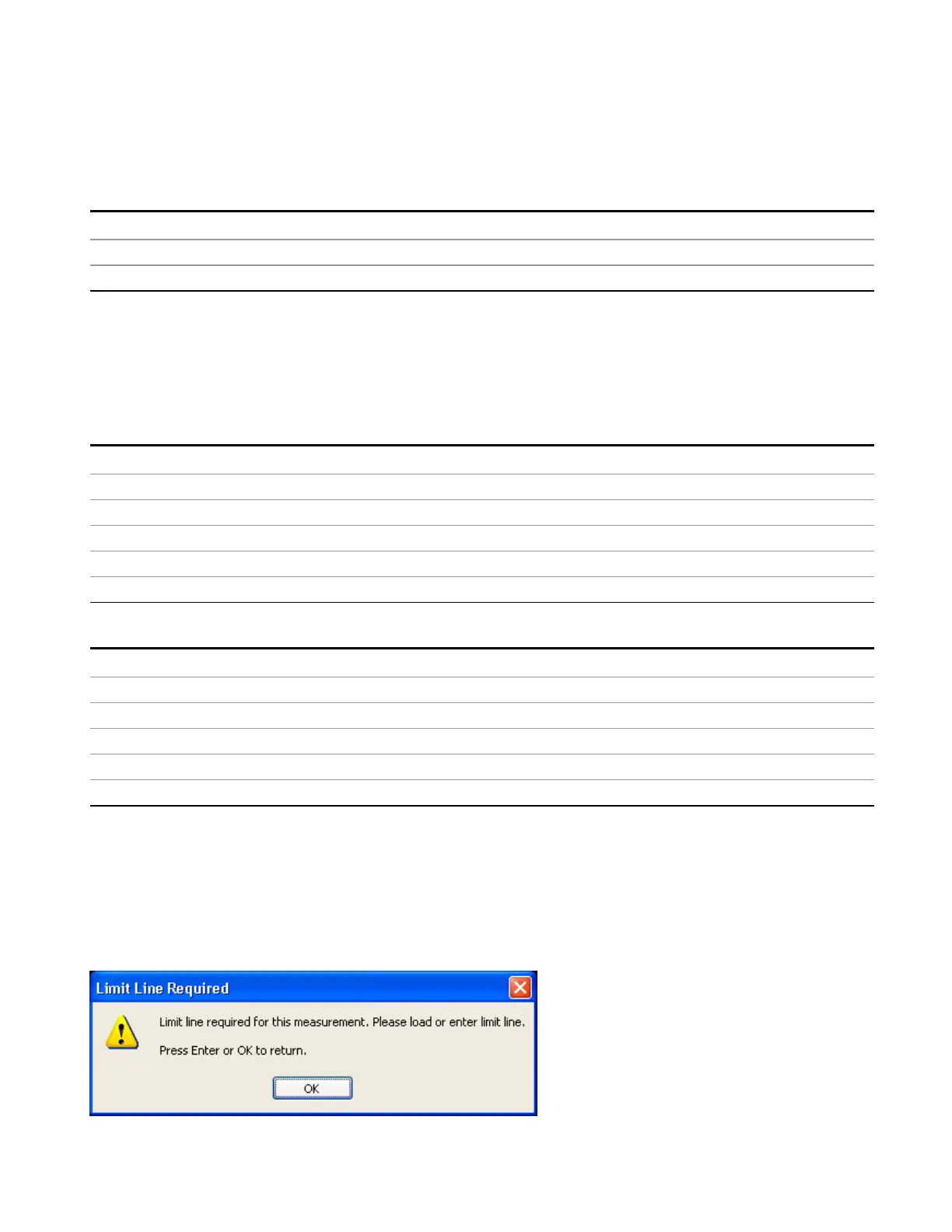

If the limit table is empty when this key is pressed, a prompt message is placed on the screen that says:
EMI Receiver Mode Reference 1005
