11 APD Measurement
Recall
You want all traces to load exactly
as they were when saved.
Save State On recall, all traces’ mode and data
will be exactly as they were when
saved. Any traces that were
updating willhave their data
immediately overwritten.
From File…

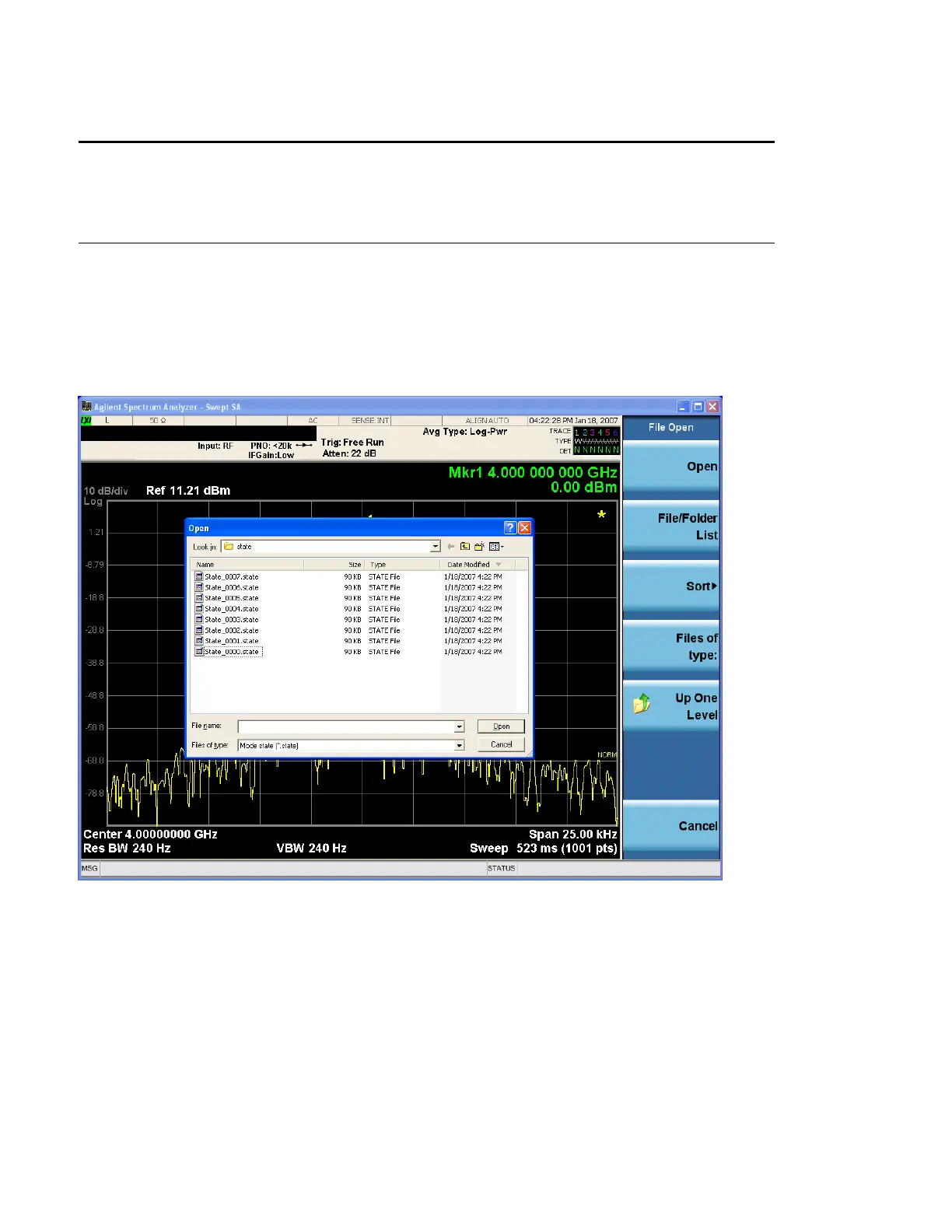

When you press “From File”, the analyzer brings up a Windows dialog and a menu entitled “File Open.”
This menu allows you to navigate to the various fields in the Windows dialog without using a keyboard or
mouse. The Tab and Arrow keys can also be used for dialog navigation.
Listed below are the functions of the various fields in the dialog, and the corresponding softkeys:
Open
Performs the recall of the specified file. While the recall is being performed, the floppy icon appears briefly
in the Meas bar.
File/Folder List
Enables you to navigate to the center of the dialog that contains the list of files and folders. Once here you
can get information about the file and use the tab keys to navigate to the other fields in the dialog, such as
Look In.
968 EMI Receiver Mode Reference
