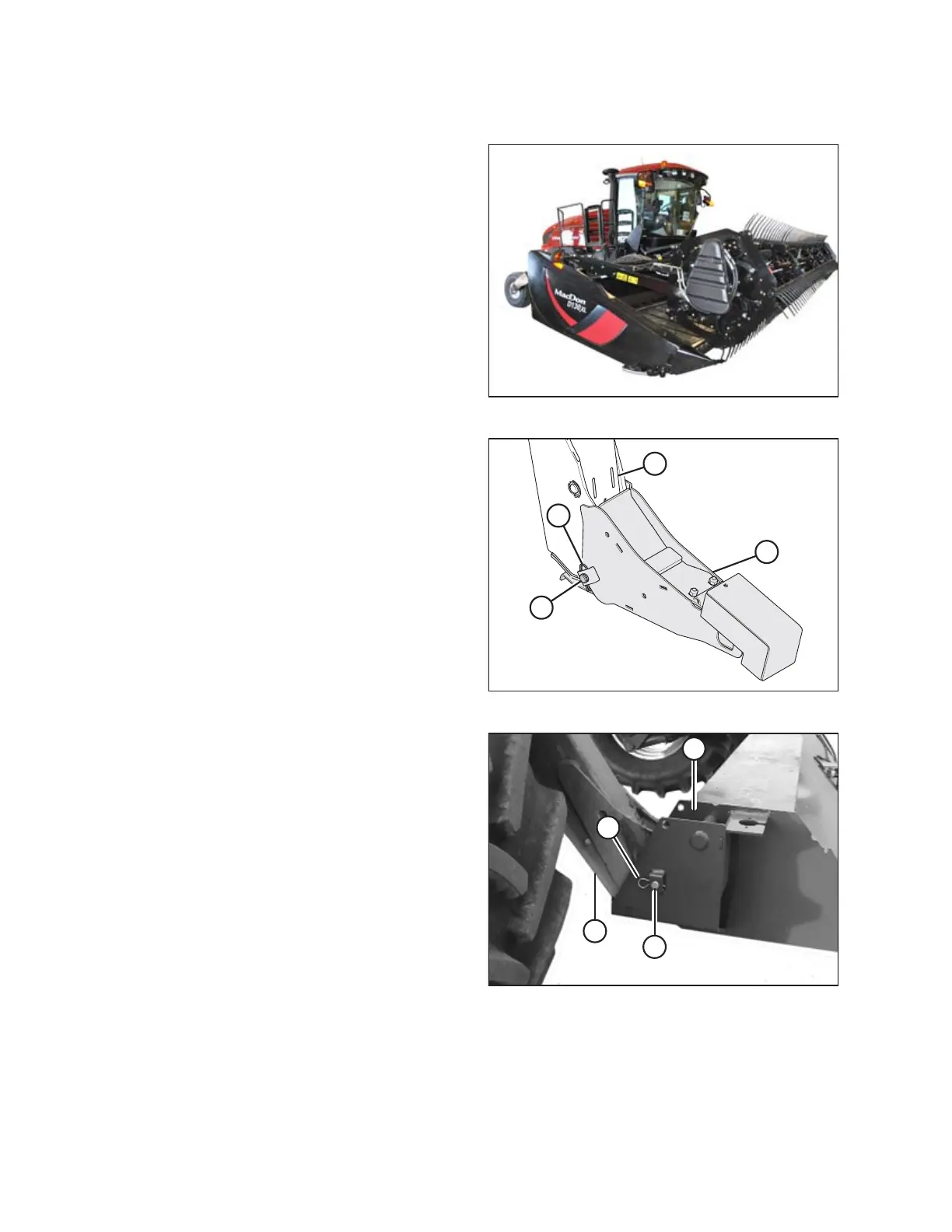

Preparing Windrower to Tow a Header
1019410
Figure 4.55: Windrower with Header
1. Attach header to windrower. Refer to Attaching a D1X or
D1XL Series Header, page 158 .
1015593
A
B
C
D
Figure 4.56: Draper Header Support
2. Convert header to transport mode. Refer to header
operator’s manual.
3. Detach header from windrower. Refer to Detaching a D1X
or D1XL Series Header, page 165.
4. Remove hairpin (D) and clevis pin (C) securing header
support (B) to leg (A). Retain pins for attaching weight box.
5. Remove header support (B) from windrower lift leg (A).
6. Repeat above step for opposite support.
1019405
A
B
C
D
Figure 4.57: Windrower Lift Linkage
7. Drive windrower so that lift legs (A) are positioned into the
weight box (B) pockets. Raise lift legs slightly.
8. Stop the engine and remove the key.
9. Install locking pin (C) into pocket and secure with
hairpin (D). Repeat for opposite leg.
NOTE:
Pins were previously removed from the header supports.
