214733 147 Revision A
CAUTION
Check to be sure all bystanders have cleared the area.

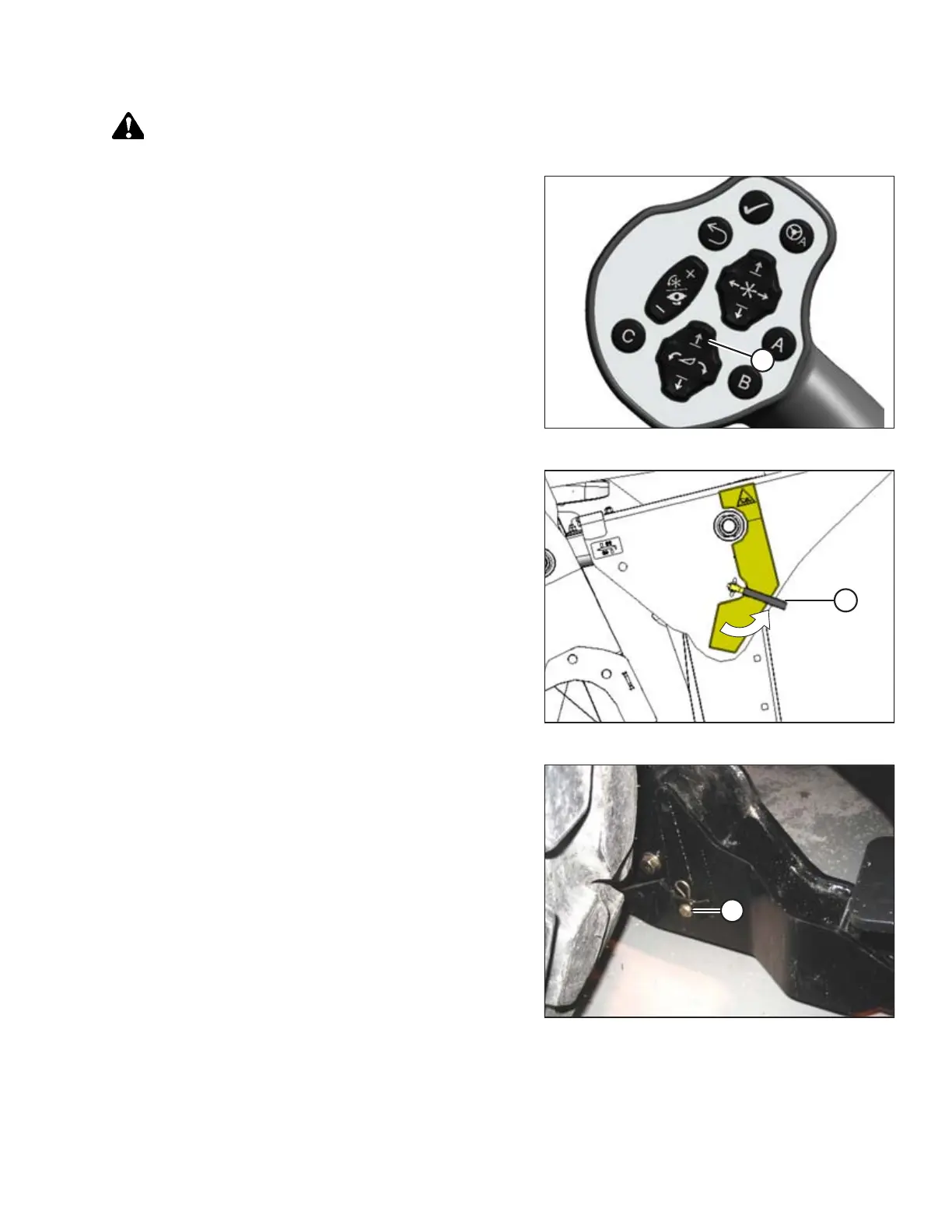

Figure 4.70: GSL
14. Press the HEADER UP switch (A) to raise header to
maximum height.
15. If one end of the header does NOT fully raise, rephase the
lift cylinders as follows:
a. Press and hold the HEADER UP switch (A) until both
cylinders stop moving.
b. Continue to hold the switch for 3–4 seconds. Cylinders
are now phased.
NOTE:
This procedure may have to be repeated if there is air in the
system.
16. Stop the engine and remove the key.
Figure 4.71: Cylinder Safety Prop
17. Engage safety prop on the windrower’s lift cylinder as
follows:
a. Pull lever (A) and rotate toward header to release, and
lower safety prop onto cylinder.
b. Repeat for opposite lift cylinder.
IMPORTANT:
Ensure the safety props engage over the cylinder piston
rods. If a safety prop does not engage properly, raise the
header until the prop fits over the rod.
Figure 4.72: Header Support
18. Install clevis pin (A) through support and foot, and secure
with hairpin. Repeat for opposite support.
IMPORTANT:
Ensure clevis pin (A) is fully inserted and hairpin is installed
behind bracket.
OPERATION
