214733 148 Revision A

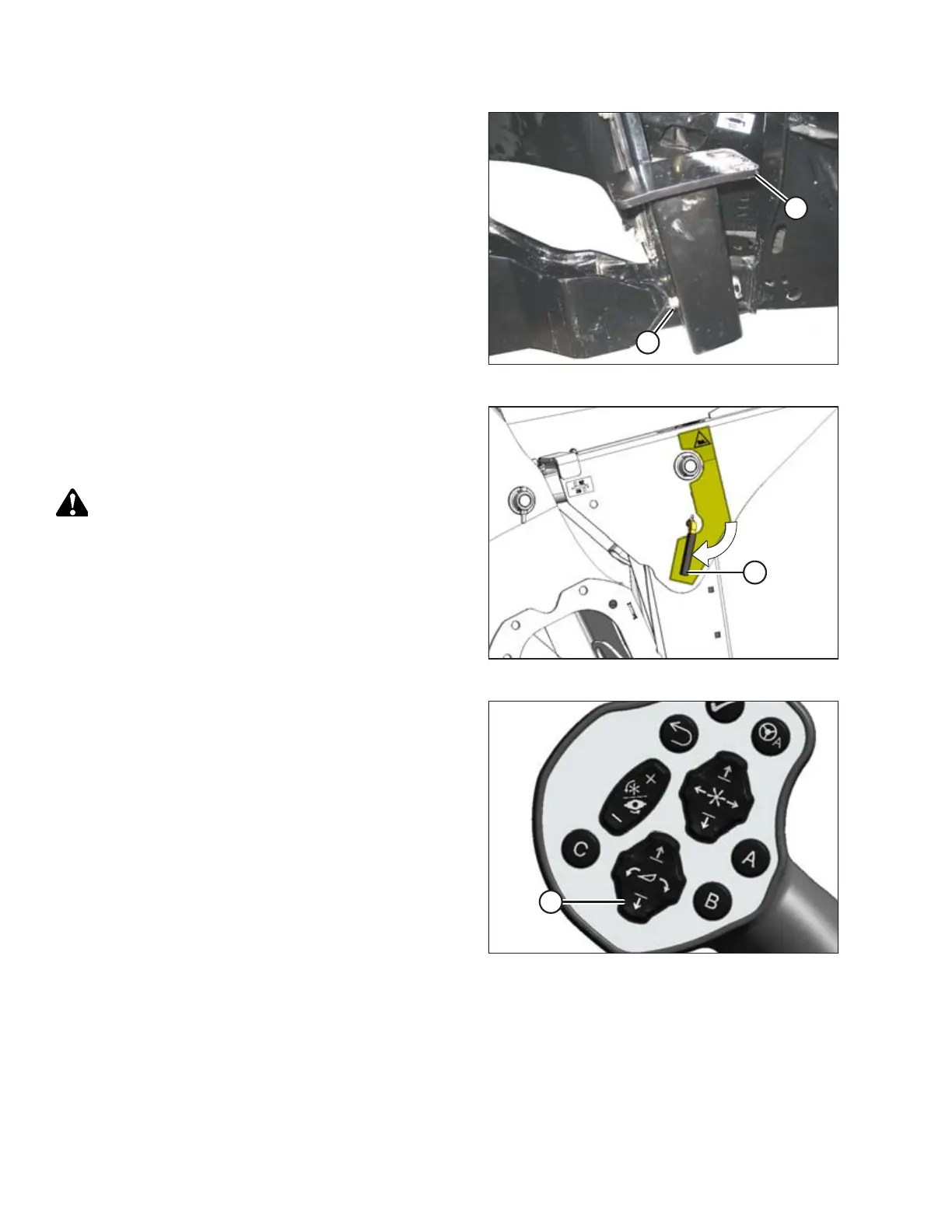

Figure 4.73: Header Stand
19. Remove lynch pin from clevis pin (A) in stand (B).
20. Hold stand (B) and remove pin (A).
21. Move stand to storage position by inverting and relocating
onto bracket as shown. Reinsert clevis pin (A) and secure
with lynch pin.
Figure 4.74: Cylinder Safety Prop
22. Disengage safety prop by turning lever (A) downward to
raise prop until lever locks into vertical position.
23. Repeat for opposite side.
CAUTION
Check to be sure all bystanders have cleared the area.
Figure 4.75: GSL
24. Start engine and press HEADER DOWN switch (A) on GSL to
fully lower header.
OPERATION
