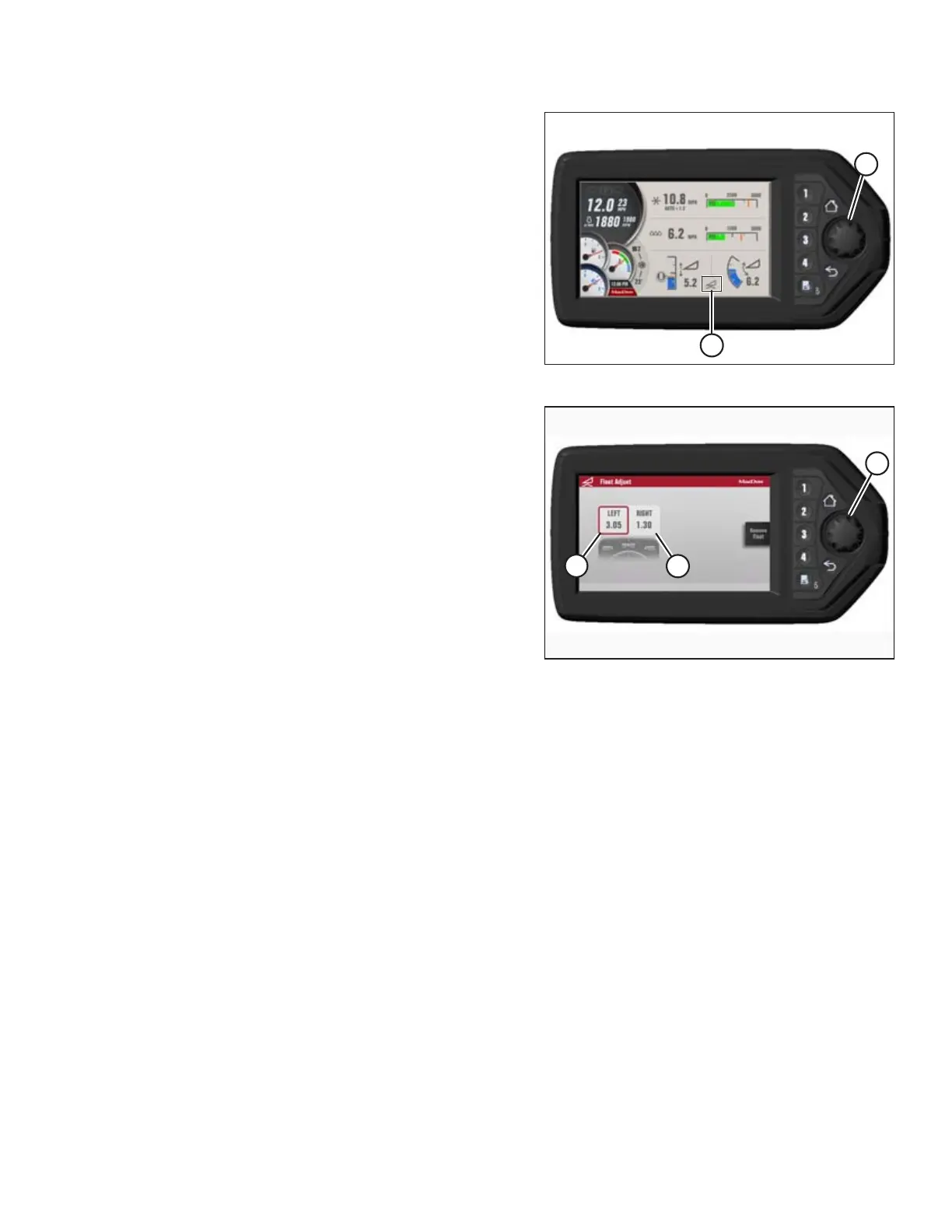

Figure 4.76: HPT Display
25. Press rotary scroll knob (A) on HPT to highlight QuickMenu
options.
26. Rotate scroll knob (A) to highlight the HEADER FLOAT
symbol (B). Press scroll knob to select.
Figure 4.77: HPT Display
27. Turn scroll knob (A) to highlight left (B) or right (C) float and
press knob (A) to activate selection.
28. Rotate scroll knob (A) to adjust float setting and press knob
when finished.
IMPORTANT:
Float adjustments of 1.0 (out of 10) change the header
weight at the cutterbar by approximately 91 kg (200 lb.).
Adjust float in increments of 0.05 to optimize field
performance.
29. Stop the engine and remove the key.
30. Grasp one end of the auger header and lift. Lifting force
should be 335–380 N (75– 85 lbf) and should be the same at
both ends.
31. Proceed to Connecting A40DX Hydraulics, page 150.
