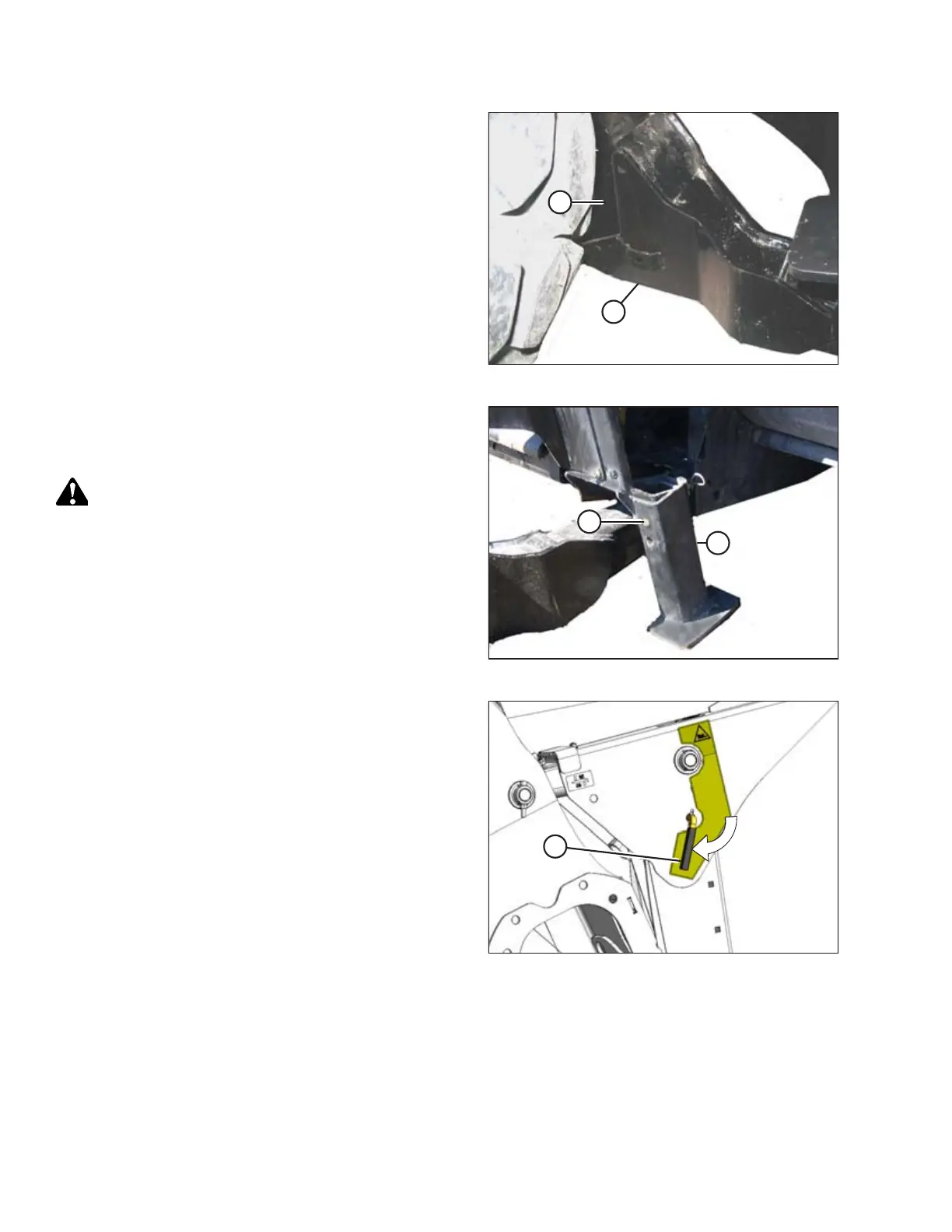

Figure 4.86: Header Support
5. Remove hairpin from the clevis pin (A) and remove clevis
pin from header support (B) on both sides.
1000797
A
B
Figure 4.87: Header Stand
6. Lower stand (A) by pulling clevis pin (B), inverting stand,
and relocating on bracket. Reinsert pin (B) and secure with
hairpin.
CAUTION
Check to be sure all bystanders have cleared the area.
1019357
A
Figure 4.88: Safety Props
7. Disengage safety props by turning lever (A) away from
header to raise safety prop until lever locks into vertical
position. Repeat for opposite cylinder.
8. Start engine, choose a level area, and lower header to the
ground.
