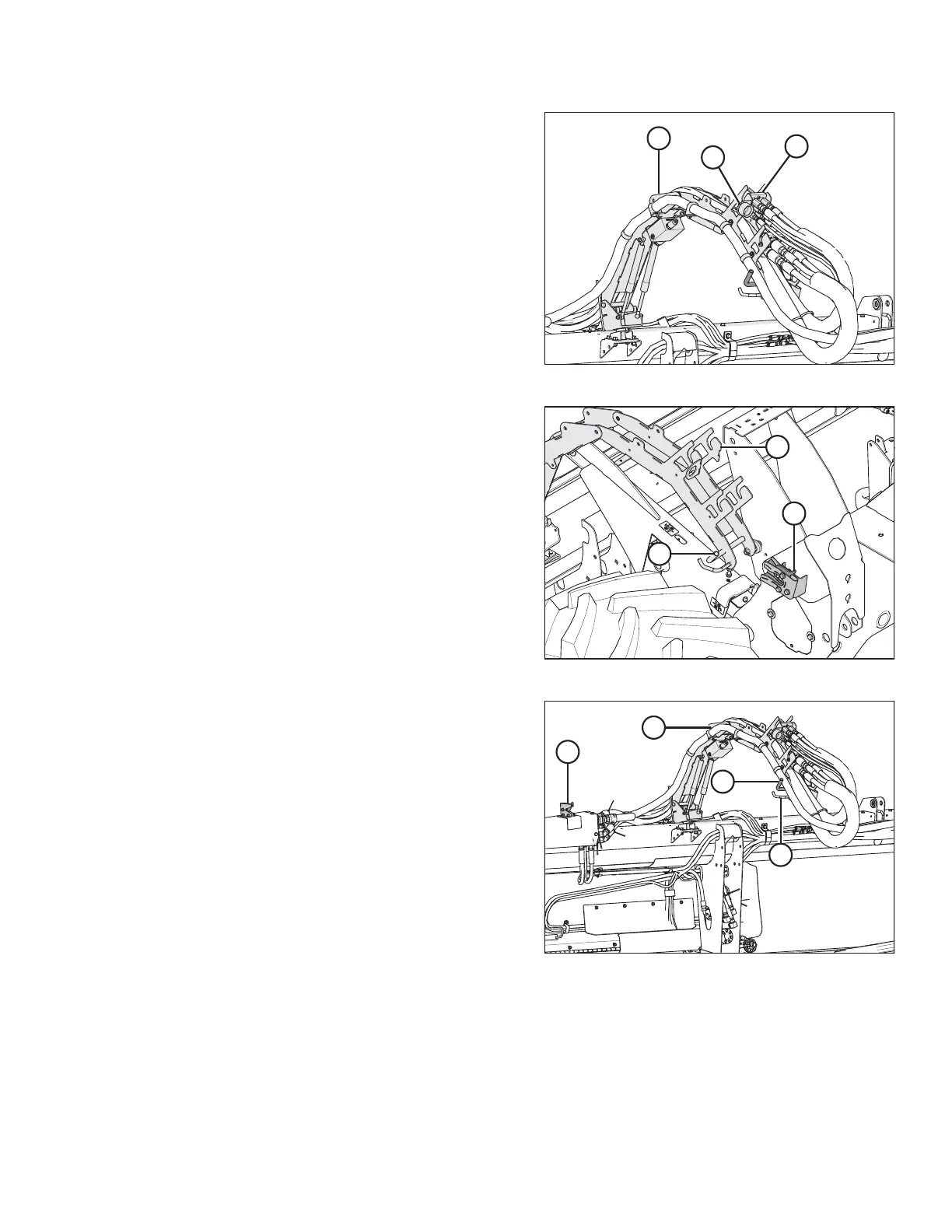

Figure 4.119: Hose Management Arm
12. Route draper drive/reel hose bundle back to the storage
position (A) on the hydraulic hose management arm (B).
13. Insert electrical connector into storage cup (C).
14. Close platform. Refer to 5.4.2 Closing Platform, page 258.
1019477
A
C
B
Figure 4.120: Hose Management Arm
15. Disconnect hose management arm (A) from windrower by
pulling latch lever (B) to open the latch. Keep latch open
and move hose management arm (A) away from header
with handle (C).
1019476
A
B
C
D
Figure 4.121: Hose Management Arm
16. Pivot hose management arm (B) forward with handle (A),
and engage hook (D) into latch (C) on header.
