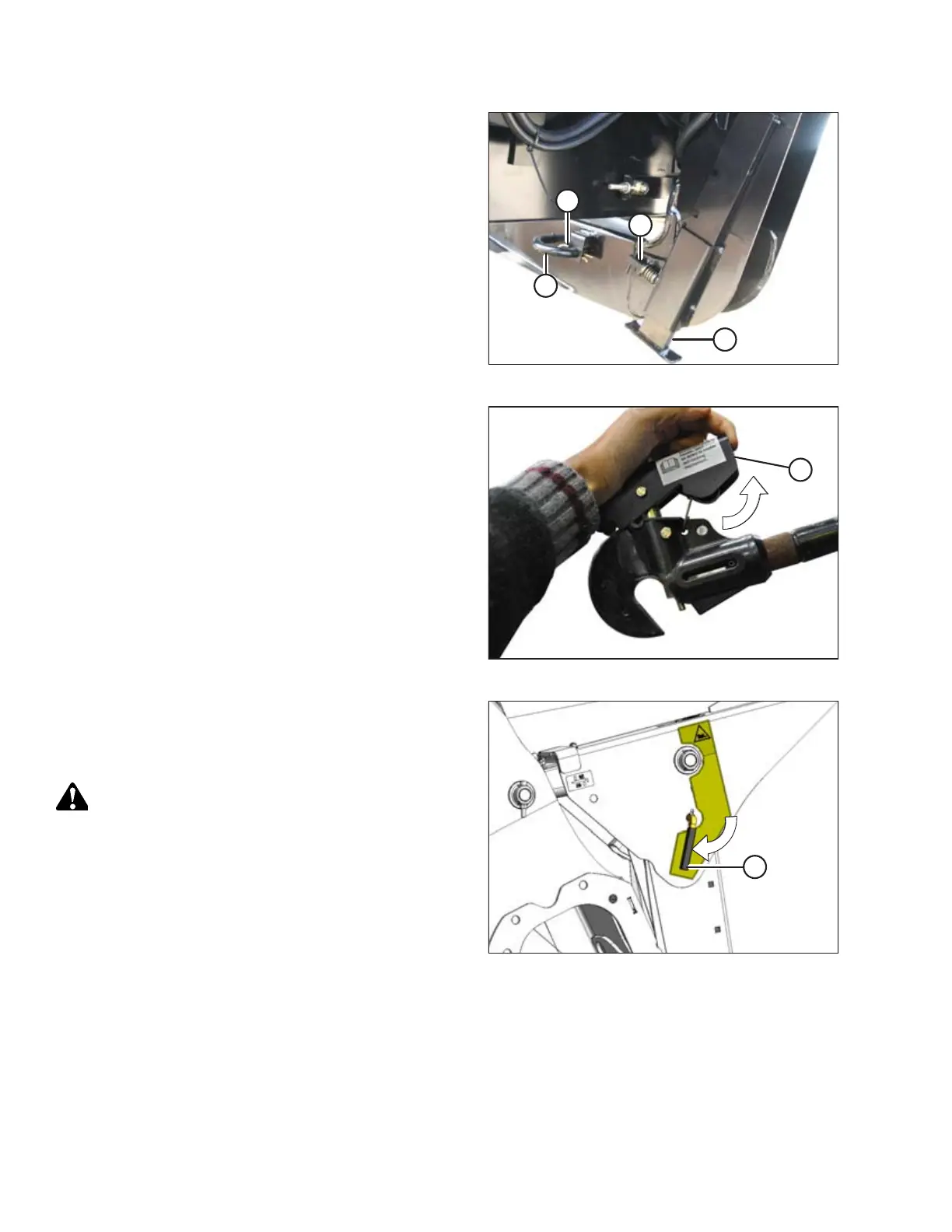

Figure 4.122: Header Stand
17. Remove the header leg pin (B) by removing the hairpin (A)
from header leg on both sides.
18. Lower header stand (D) by pulling spring loaded pin (C).
Release spring pin to lock stand.
Figure 4.123: Center-Link
19. Windrowers with self-aligning center-link: Release the
center-link latch (A) before returning to the cab.
Figure 4.124: Disengaging Safety Prop
20. Disengage safety prop by turning lever (A) downwards until
lever locks into the vertical position.
21. Repeat for the opposite side.
CAUTION
Check to be sure all bystanders have cleared the area.
