214733 182 Revision A
Self-aligning center-link:

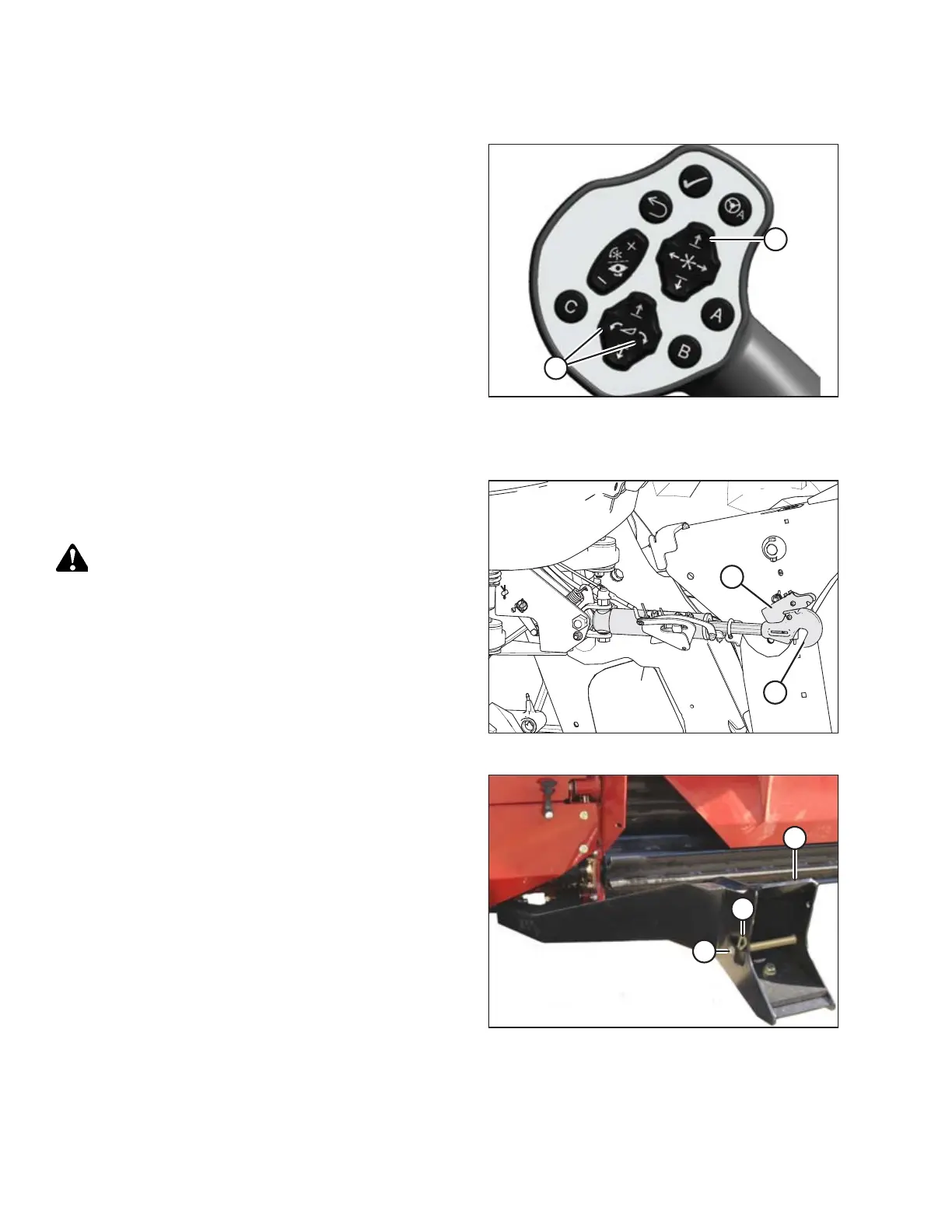

Figure 4.157: GSL
15. Use HEADER TILT cylinder switches (A) on GSL to release
load on center-link cylinder.
16. Operate the link lift cylinder with the REEL UP switch (B) to
disengage the center-link from the header.
Non-self-aligning center-link:
Figure 4.158: Hydraulic Center-Link
17. Shut off the engine and remove the key.
18. Lift hook release (A) and lift hook (B) off header pin.
CAUTION
Check to be sure all bystanders have cleared the area.
19. Start the engine.
Figure 4.159: Header Support
20. Back the windrower slowly away from header.
21. Reinstall clevis pin (A) through support (C) and secure with
hairpin (B). Repeat for opposite side.
OPERATION
