MacDon M1170 - Page 28

214733 12 Revision A
1017657
A

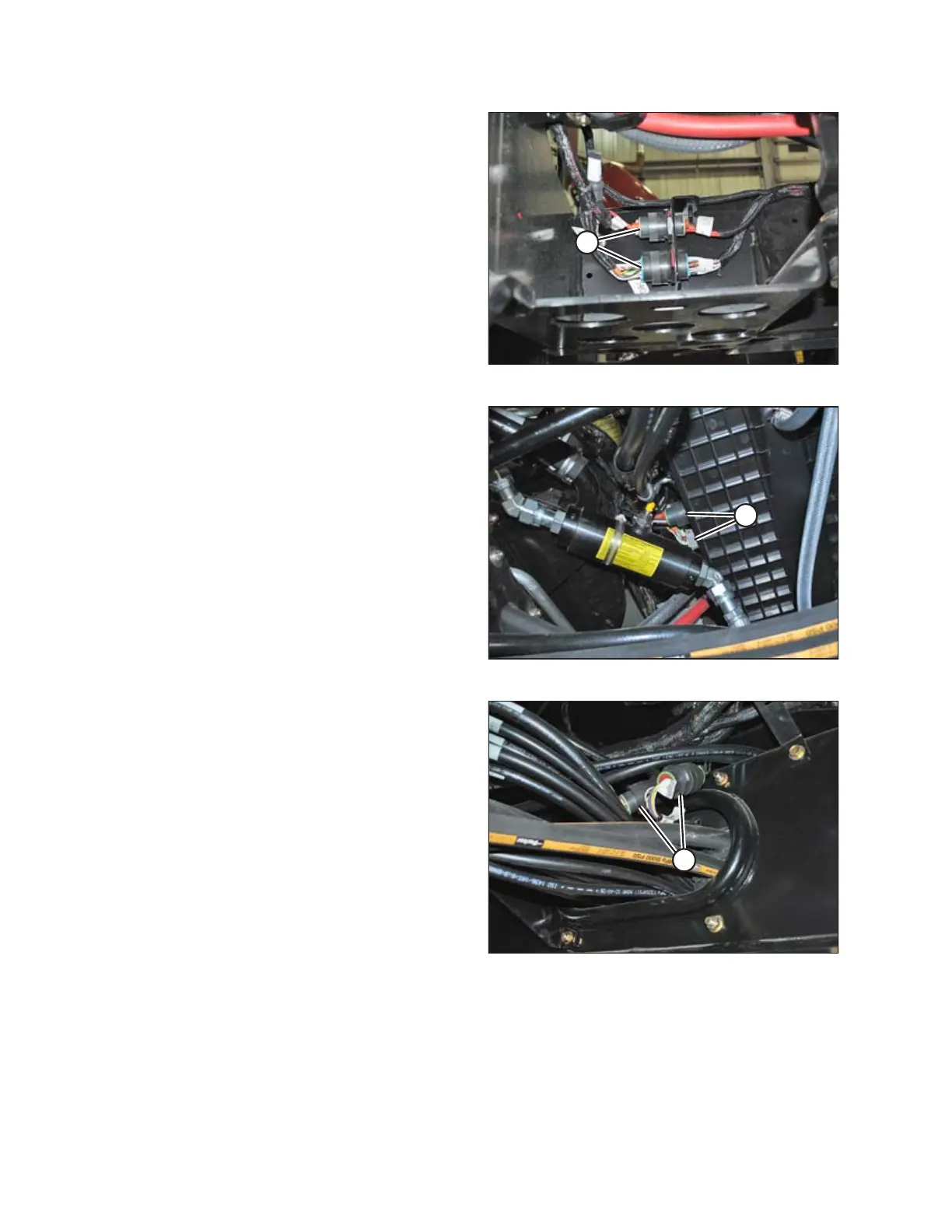

Figure 1.27: Engine Harness
• Engine harness (A)
Two round connectors: C30 and C31
Location: Inside left frame rail, at rear of windrower
1017630
A
Figure 1.28: A/C Box Connectors
• Air conditioning (A/C) box connectors (A)
Two connectors: C15 and C16
Location: Rear of A/C box
1017631
A
Figure 1.29: Wheel Motor Connectors
• Wheel motor connectors (A)
Two round connectors: C25 and C26
Location: Under center of frame, just behind front
cross member
SAFETY
