MacDon M1170 - Page 27

214733 11 Revision A
1017626
A

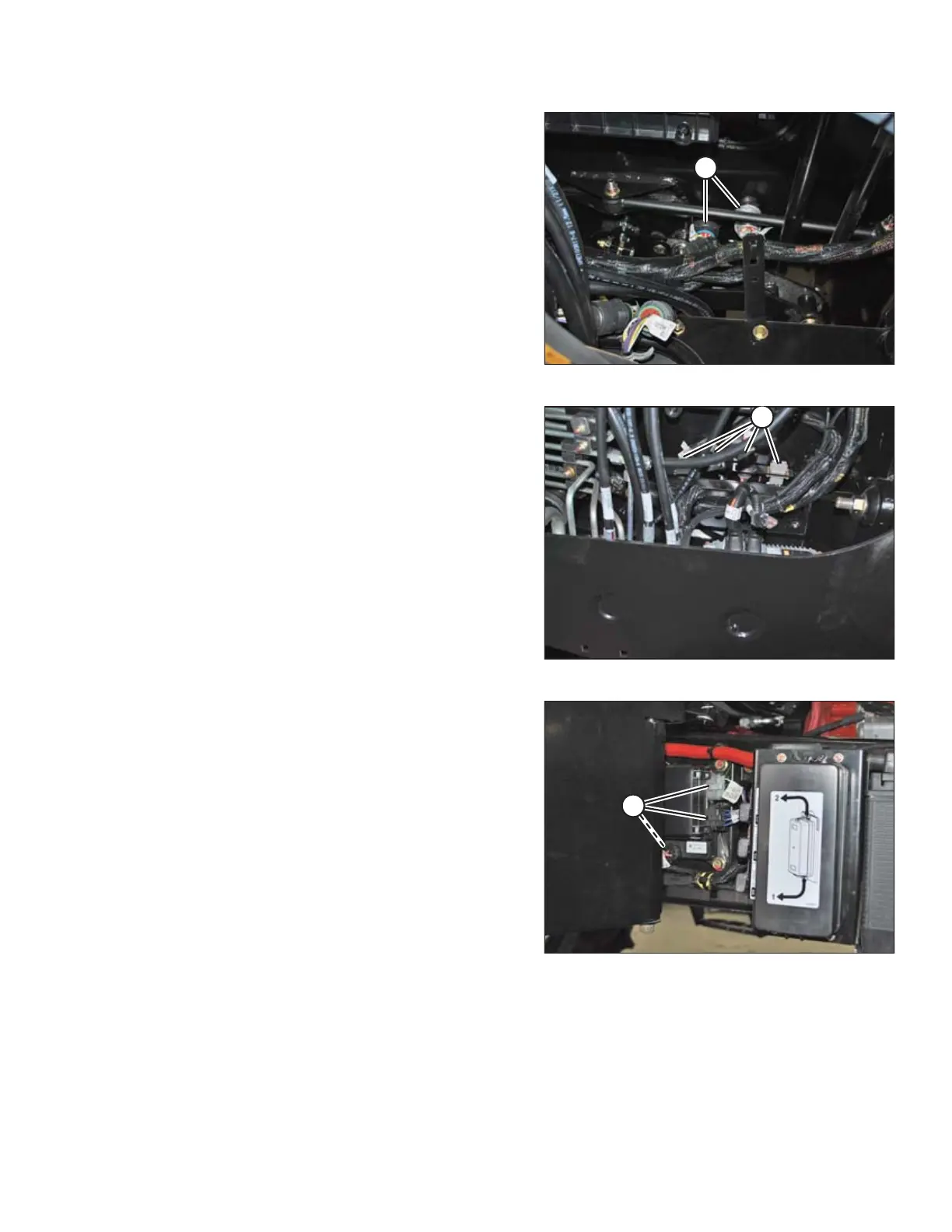

Figure 1.24: Cab Connectors
NOTE:
To disconnect the remaining circular Deutsch connectors,
rotate outer collar counterclockwise.
• Cab connectors (A)
Two round connectors: C1 and C2
Location: Under cab
1017627
A
Figure 1.25: Roof Connectors
• Roof connectors (A)
Four connectors: C10, C12, C13, and C14
Location: Under cab at base of left cab post
1017628
A
Figure 1.26: Chassis Relay Module
• Chassis relay module (A)
Three connectors: P240, P241, and P242
Location: Outside left frame rail near batteries
SAFETY
