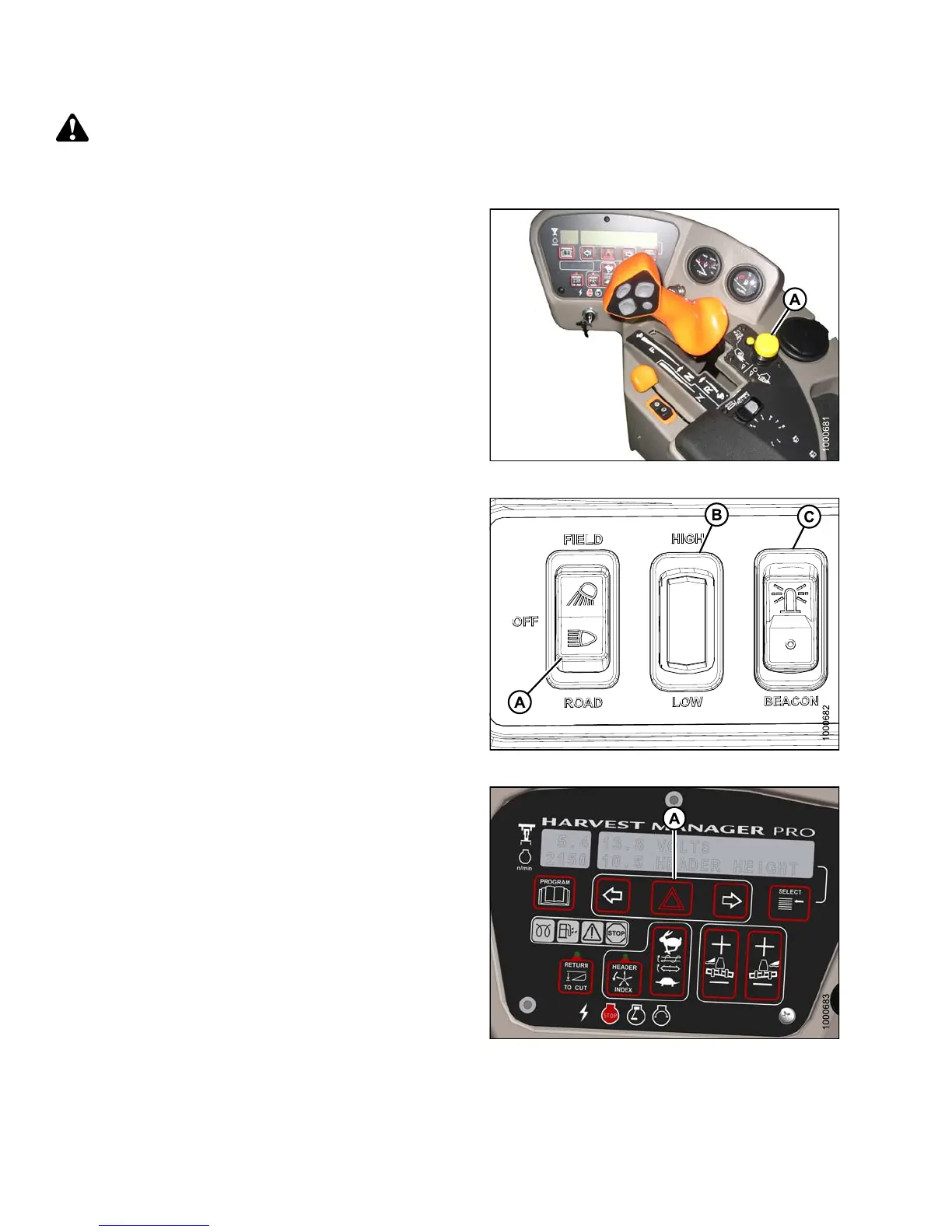

OPERATION
CAUTION
Check local laws for width regulations and lighting and marking requirements before transporting on roads.
Before driving windrower on a roadway:
1. Ensure HEADER DRIVE switch (A) is pushed to OFF
position (dow n).
2. Clean flashing amber lamps, red tail and head lamps,
and check that they work properly.
3. Clean all reflective surfaces and slow moving
vehicle emblems.
4. Adjust interior rear view mirror and clean windows.
Figure 4.32: Header Drive S witch
5. Push LIGHT switch (A) to ROAD position to activate
lamps. Always use these lamps on roads to provide
warning to other vehicles.
a. Use HIGH / LOW L IGHTS ( B) as requ ire d when
other vehicles are approaching.
b. Do NOT use FIELD lamps on roads, other drivers
maybeconfusedbythem.
6. Push BEACON switch (C) ON to activate beacons.
Figure 4.33: Light Switches
7. Press switch (A) on cab display module (CDM) to
activate hazard lights.
Figure 4.34: CDM
147649 176 Revision A
