OPERATION
5. Remov e hairpin from the clev is pin (A) and remove
clevis pin from header boots (B) on both sides.

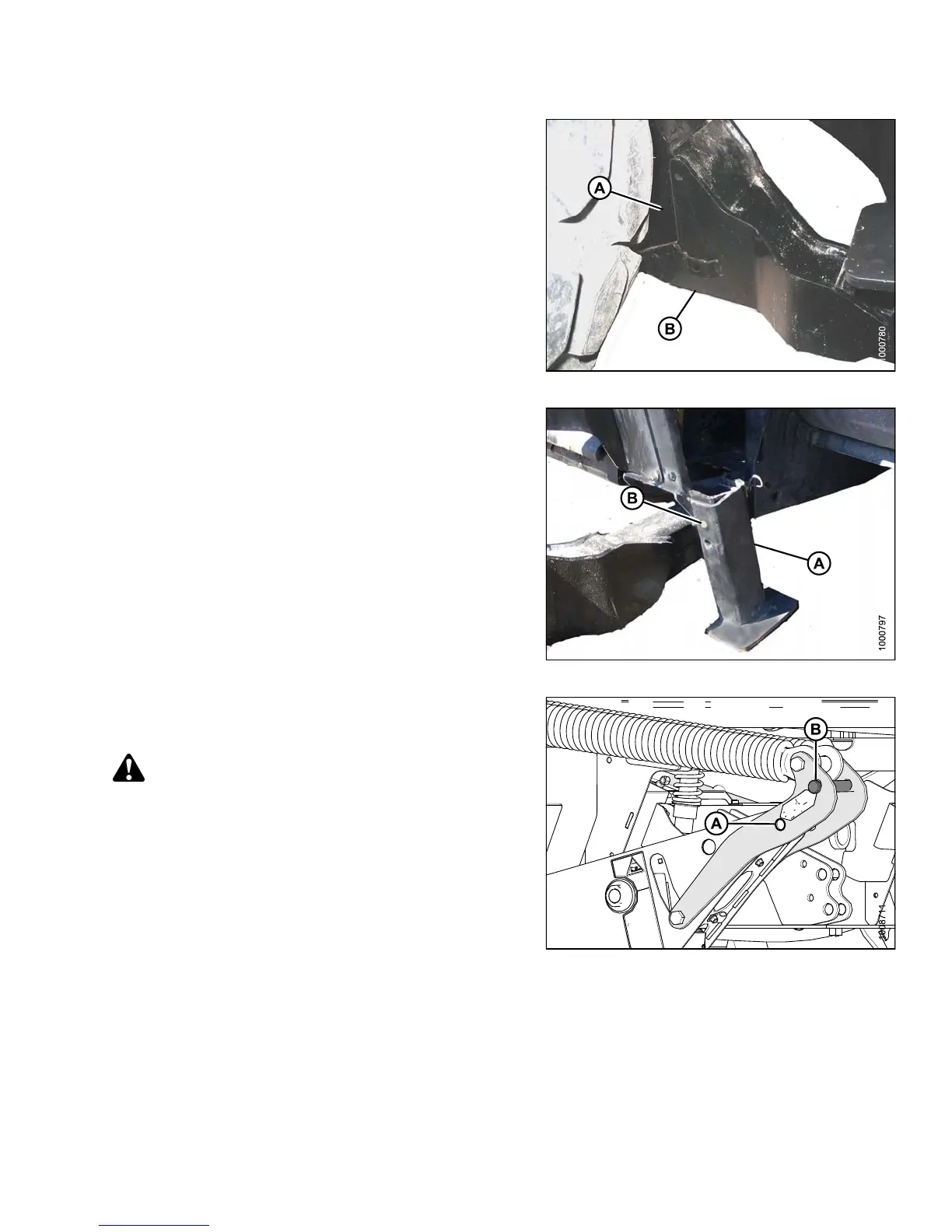

Figure 4.202: Header Boot
6. Lower stand (A) b y pulling clevis pin (B), inverting
stand, and relocating on bracket. Reinsert pin (B) and
secure with hairpin.
Figure 4.203: Header Stand
7. Remove clevis pin from linkage (A) to disengage float
springs, and insert clevis pin into storage hole (B).
Secure with lynch pin. Repeat for opposite linkage.
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight
box attached to the windrower, ensure the float
engagement pin is installed in storage position (B)
and NOT in engaged position (A).
Figure 4.204: Header Float Linkage
147649 251 Revision A
