OPERATION

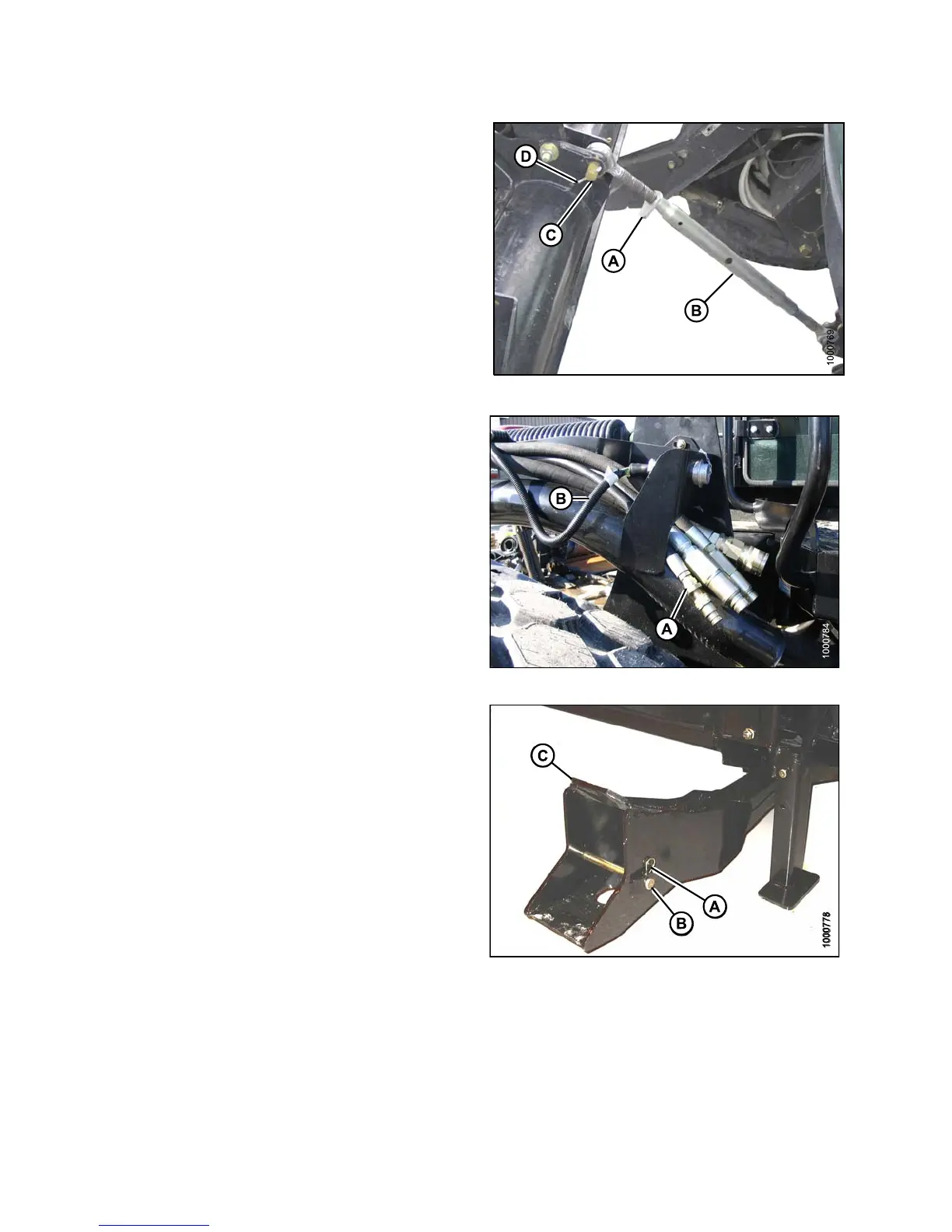

10. Loosen nut (A) and rotate barrel (B) to relieve load
on lin k.
11. Remove cotter pin (D) on clevis pin (C) and remove pin
to disconnect from header.
12. Reinstall clevis pin in header.
Figure 4.21
6: Mechanical Center-Link
13. Disconnect header drive hydraulics (A) and
electrical harness (B). Refer to the auger header
operator’s manual.
14. Slowly back windrower away from header.
Figure 4
.217: Header Drive Hydraulics
15. Reinstall clevis pin (B) and secure with hairpin (A) in
header boot (C).
16. Repeat for the opposite side.
Figu
re 4.218: Header Boot
