OPERATION
CAUTION
Check to be sure a ll bystanders have cleared the area.
IMPORTANT:
Remove protective cover from exhaust stack prior to
starting engine.
2. Start the engine and activate the header down
button (A) on the ground speed lever (GSL) to fully
retract header lift cylinders.
IMPORTANT:
If the center-link is too low, it ma y contact the header
as the windrower approaches the header for hookup.

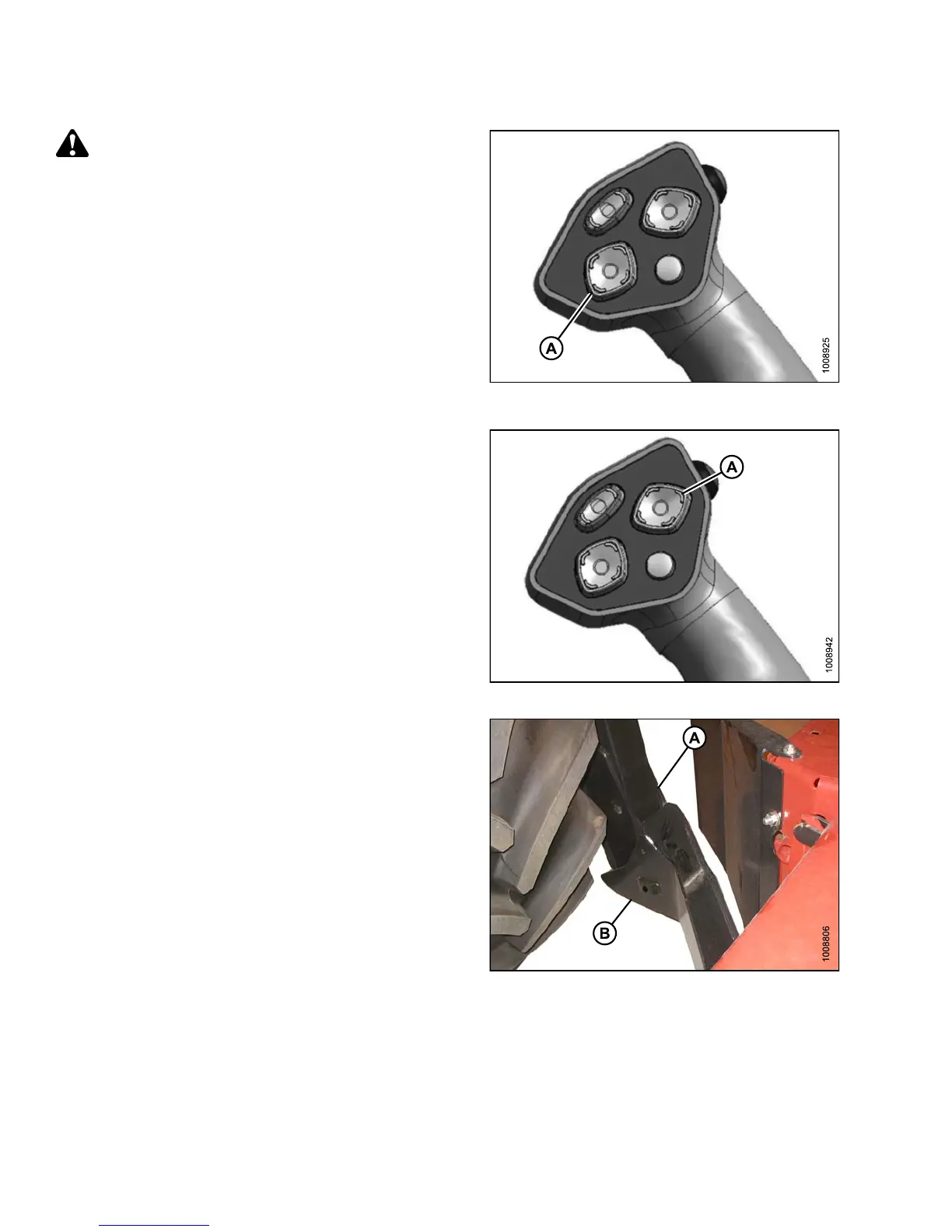

Figure 4.221: GSL
3. Activatethereelupswitch(A)ontheGSLtoraisethe
center-link until the hook is above the attachment pin
on the header.
Figure 4.222: GSL
4. Drive the windrower slowly forward until the windrower
feet (A) enter the header boots (B). Continue driving
slowly forward until the feet engage the boots and the
header nudges forward.
Figure 4.223: Header Boot
147649 258 Revision A
