MAINTENANCE AND S ERVICING

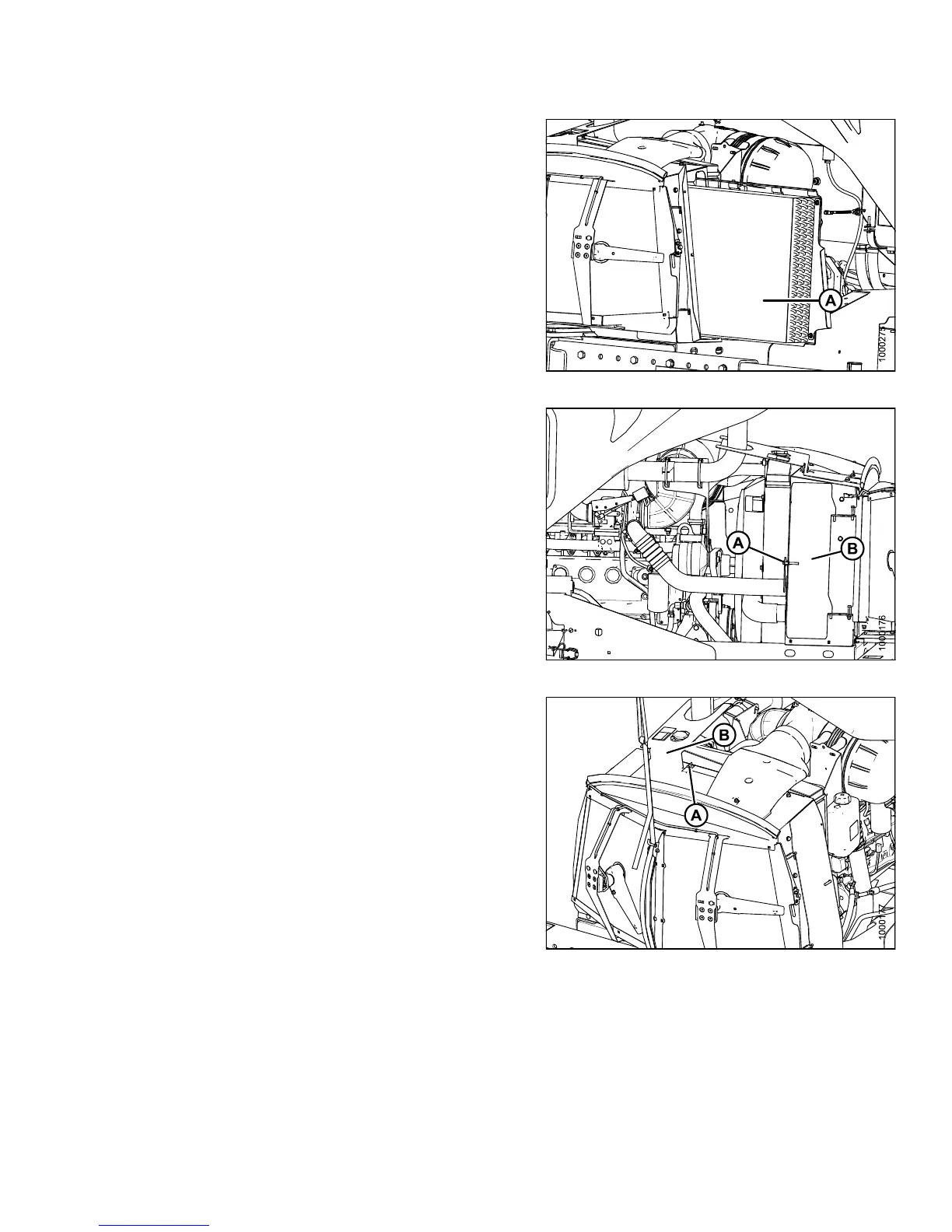

3. Slide out the oil cooler / air conditioning condenser
assembly (A).
Figure 5.102: Engine Cooling System
4. Lift latch (A) and open the left-hand access door (B).
Figure 5.103: LH Cooler Access Door
5. Remove wing nut (A) and open access door (B) at top
of cooling box.
NOTE:
Fins on
coolers can be very easily bent which
may int
erfere with its function. Exercise caution
when cl
eaning.
Figure 5.104: Engine Cooling System
147649 361 Revision A
