MAINTENANCE AND SERVICING
2. Turn lens (A) counterclockwise to unlock lens from
base and remove lens.

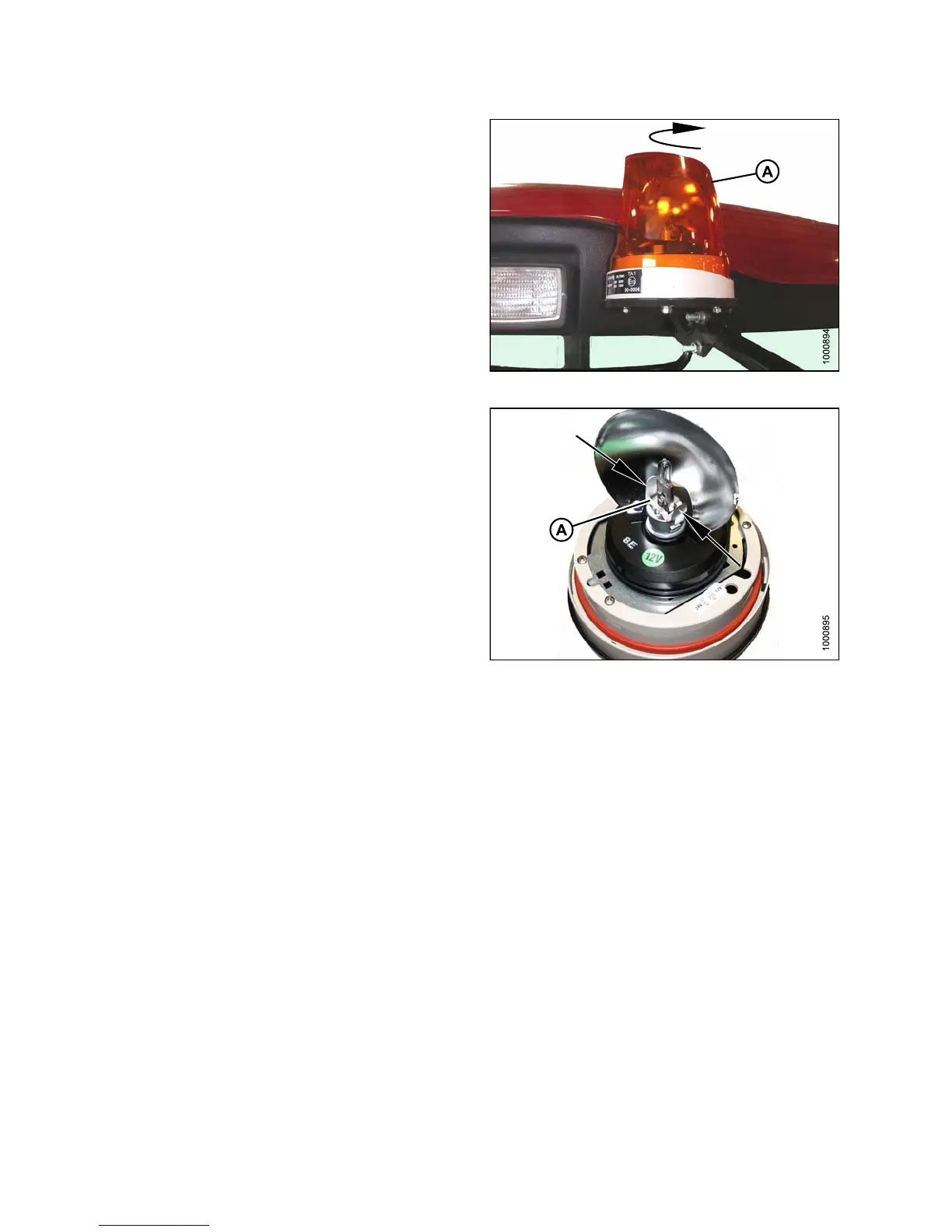

Figure 5.163: Warning Beacons
3. Pinch retainer (A) and remove it from lamp socket.
4. Pull lamp out of socket.
Figure 5.164: Beacon Lamp Assembly
147649 390 Revision A
