MAINTENANCE AND S ERVICING
5. Disconnect harness from lamp.
IMPORTAN T:
Do NOT touch the glass of the halogen bulb as
the oils or other chemicals from your skin will
cause the bulb to fail prematurely.

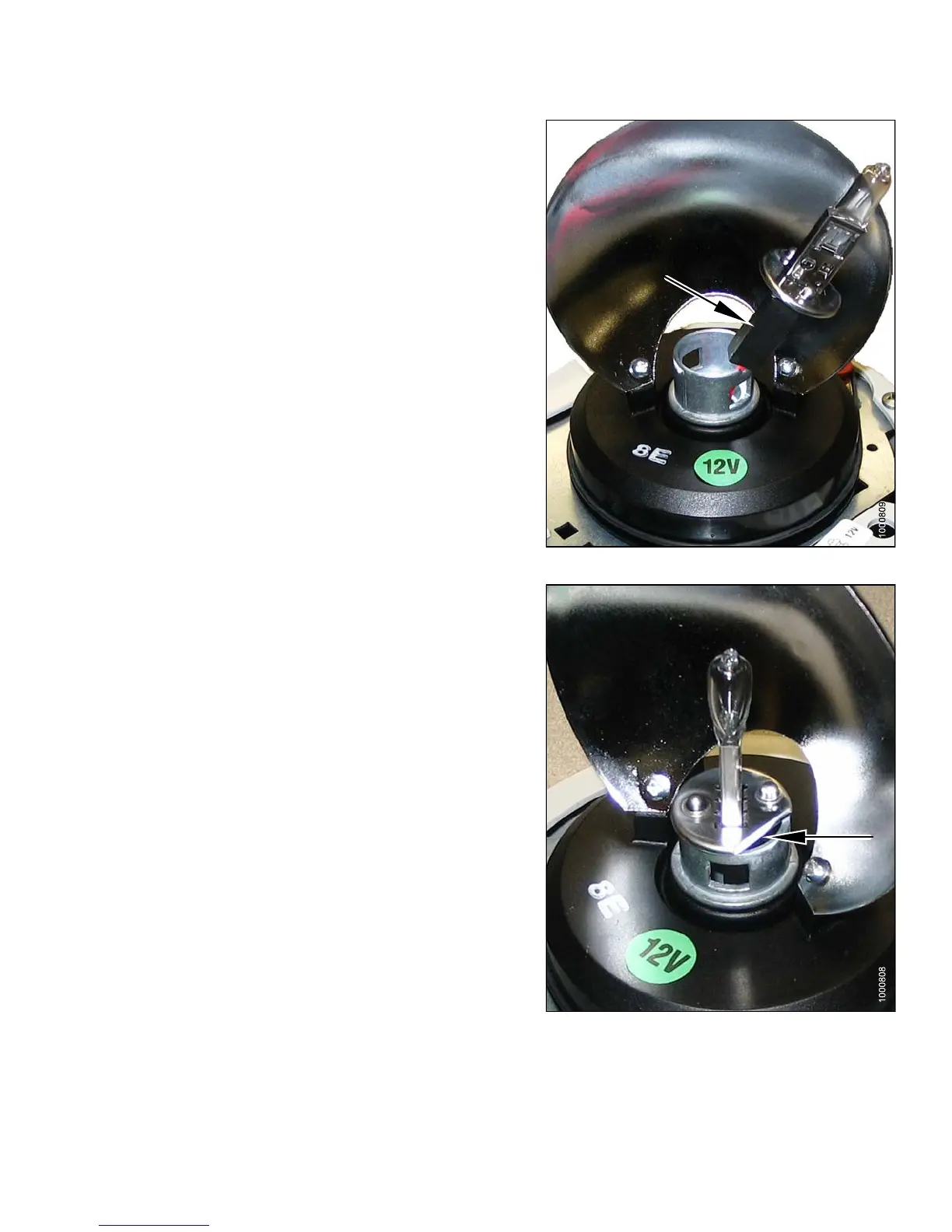

Figure 5.
165: Beacon Lamp Assembly
6. Connect harness to new lamp, place lamp in socket,
andlineuptheflat side on lamp with recess in socket.
Figure 5.166: Beacon Lamp Assembly
147649 391 Revision A
