MAINTENANCE AND SERVICING

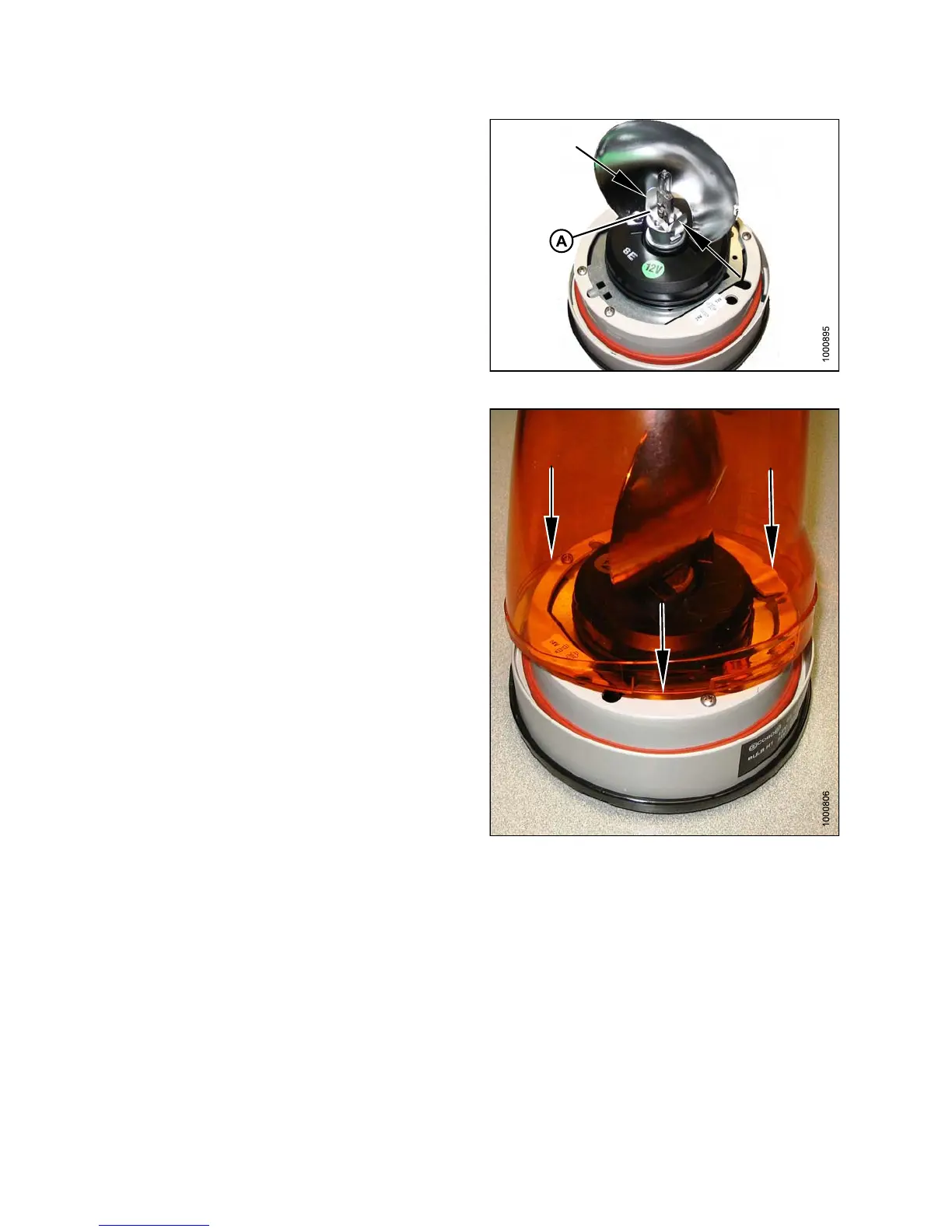

7. Place retainer (A) over lamp and pinch tabs to s ecure
retainer to socket.
Figure 5.167: Beacon Lamp Assembly
8. Line up the three lugs (one is longer) in the base with
slots in lens, and seat the lens against the rubber seal.
Figur
e 5.168: Beacon Lamp Assembly
147649 392 Revision A
