MAINTENANCE AND SERVICING
DANGER
To avoid bodily injury or death from unexpected
startup of the machine, always stop the engine and
remove the key from the ignition before leaving the
operator’s seat for any reason.
3. Place ground spee d lever (GSL) in N-D ET ENT (A),
shut down engine, and remove key.

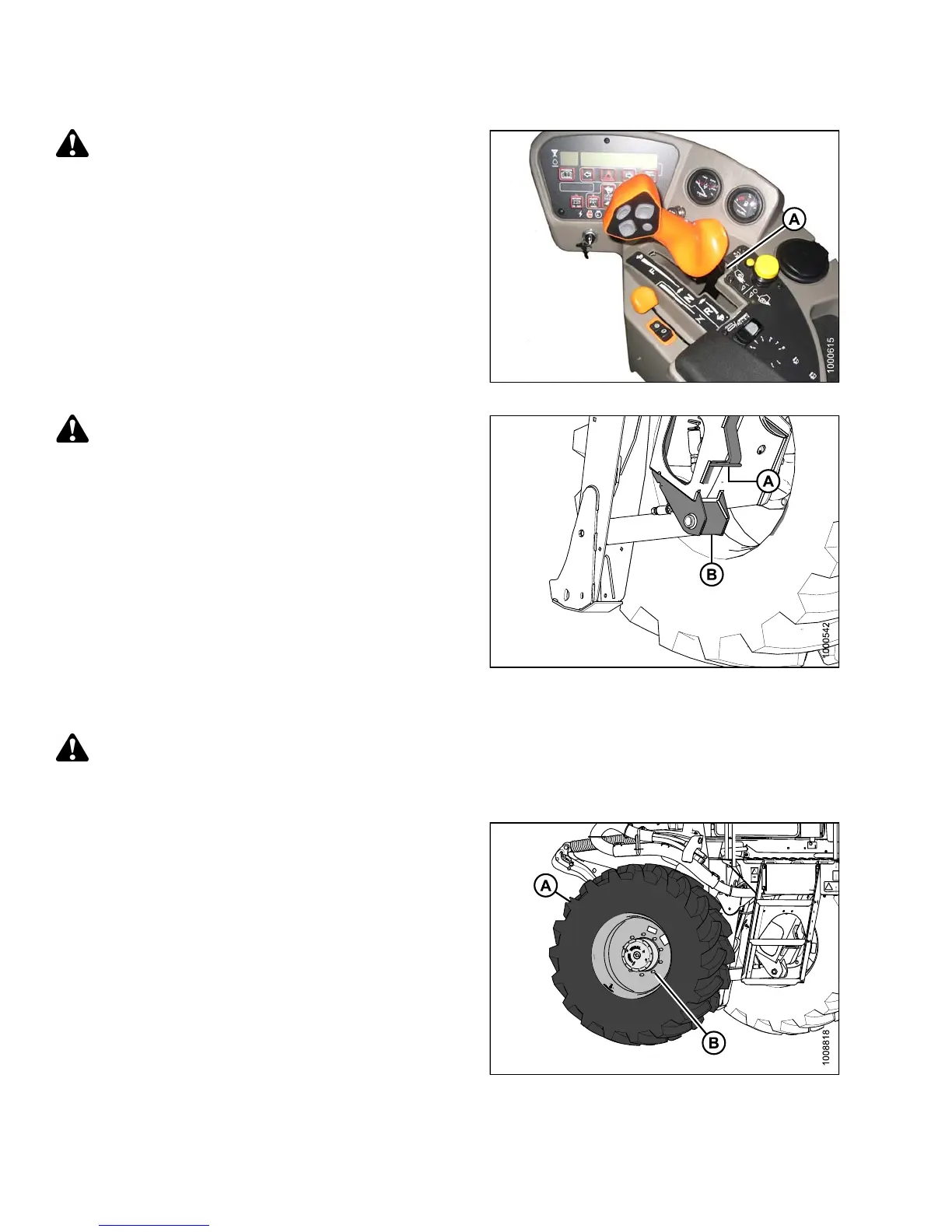

Figure 5.206: Ground Speed Lever
CAUTION
Jack stand must be capable of supporting a minimum
of 5000 lb (2268 kg).
4. Place a jack under the leg jack point (A) and raise the
drive wheel until it is slightly off grou nd. P lace a jack
stand beneath the lift cylinder mount (B).
NOTE:
Do NOT place jack stand under the cylinder. Use a
small metal plate on top of the jack stand.
5. Lower the windrower onto the jack stand.
Figure
5.207: Drive Wheel Jack Point
Remov
ing Drive Wheel
CAUTI
ON
Use a suitable lifting device capable of supporting a minimum of 2000 lbs (907 kg) to lift the wheel assembly
away from the windrower.
1. Raise the windrower drive wheel (A) off the ground.
Refer to Raising Drive Wheel, page 415.
2. Remove the wheel nuts (B).
3. Remove the drive whe el (A).
Figure 5.208: Drive Wheel Assembly
147649 416 Revision A
