MAINTENANCE AND SERVICING

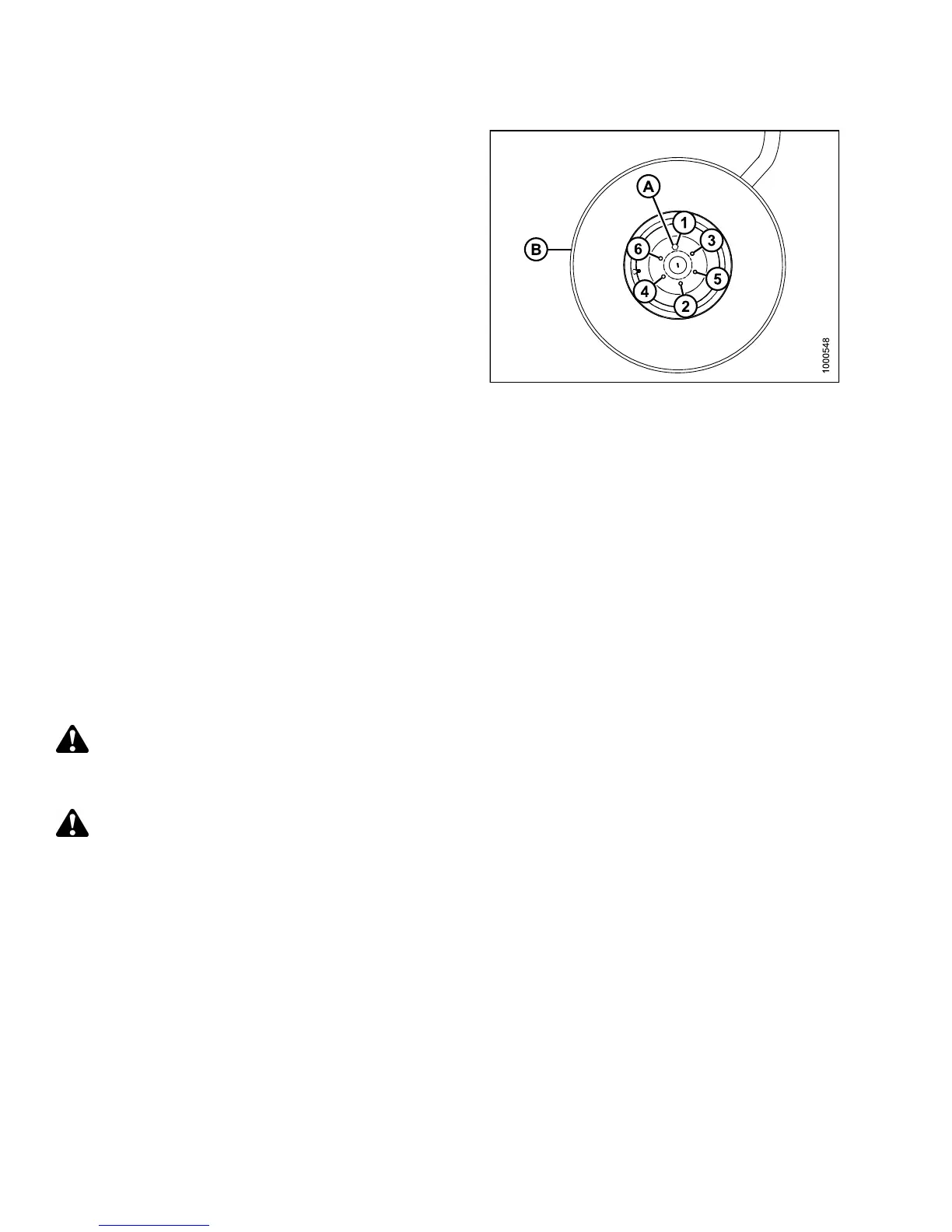

Figure 5.214: Formed Caster Wheel
Tightening Sequence
Servicing Caster Wheels
Refer to the following procedures:
• Raising Caster Wheel (Formed and Forked), page 420
• Lowering Caster Wheel (Formed and Forked), pa g e 421
• Removing Forked Caster Wheel, page 422
• Installing Forked Caste r W heel, page 4 22
• Removing Formed Ca ster Wheel, pa ge 4 23 Installing Form e d Caster Wh e el, page 423
Raising Caster Wheel (Formed and Forked)
This pr
ocedure is the same for forked and formed caster wheels.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
CAUTION
Jack stand m ust be capable of supporting a minimum of 5000 lb (2268 kg).
147649 420 Revision A
