MAINTENANCE AND SERVICING
Removing Forked Caster Wheel
CAUTION
Wheel assemblies are heavy. Support wheel
assembly before removing axle bolts.
1. Raise caster wheel, refer to Raising Caster Wheel
(Formed and Forked), page 420.
2. Remove the eight bolts (A) (four on each side of caster)
attaching a xle (B) and c o ve r (C) to forked c as ter ( E),
and remove wheel assembly (D) from caster (E).

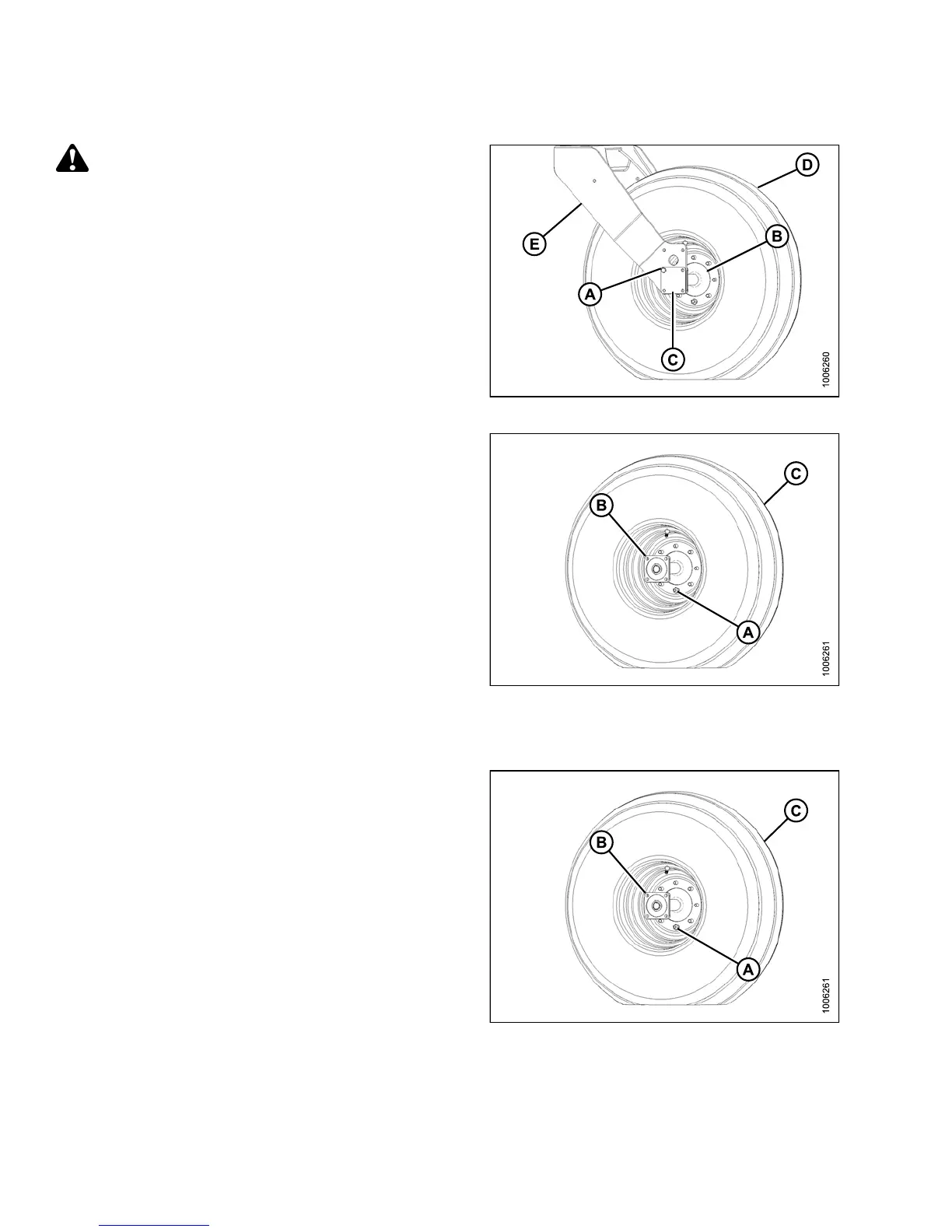

Figure 5.2
18: Caster Wheel Assembly
3. Remove the eigh t wheel nu ts (A) that secure th e
axle (B) to the wheel (C).
4. Separate axle (B) and wheel (C).
Figure
5.219: Caster Wheel Assembly
Instal
ling Forked Caster Wheel
1. Position wheel assembly (C) on axle assembly (B) and
install wheel nuts (A).
2. Torque wheel nuts (A), refer to Tightening Caster
Wheel Nuts, page 419.
Figure 5.220: Caster Wheel Assembly
