MAINTENANCE AND S ERVICING
3. Position wheel assembly (D) in forked caster (E).
4. Position cover plates (C) and install eight bolts (A) (four
on each side of caster) to sec ure axle (B) to caster (E).
Torque bolts to 75–79 ft·lbf (97–107 N·m).
5. Lower caster w heel, refer to Lowering Caster Wheel
(Formed and Forked), page 421.

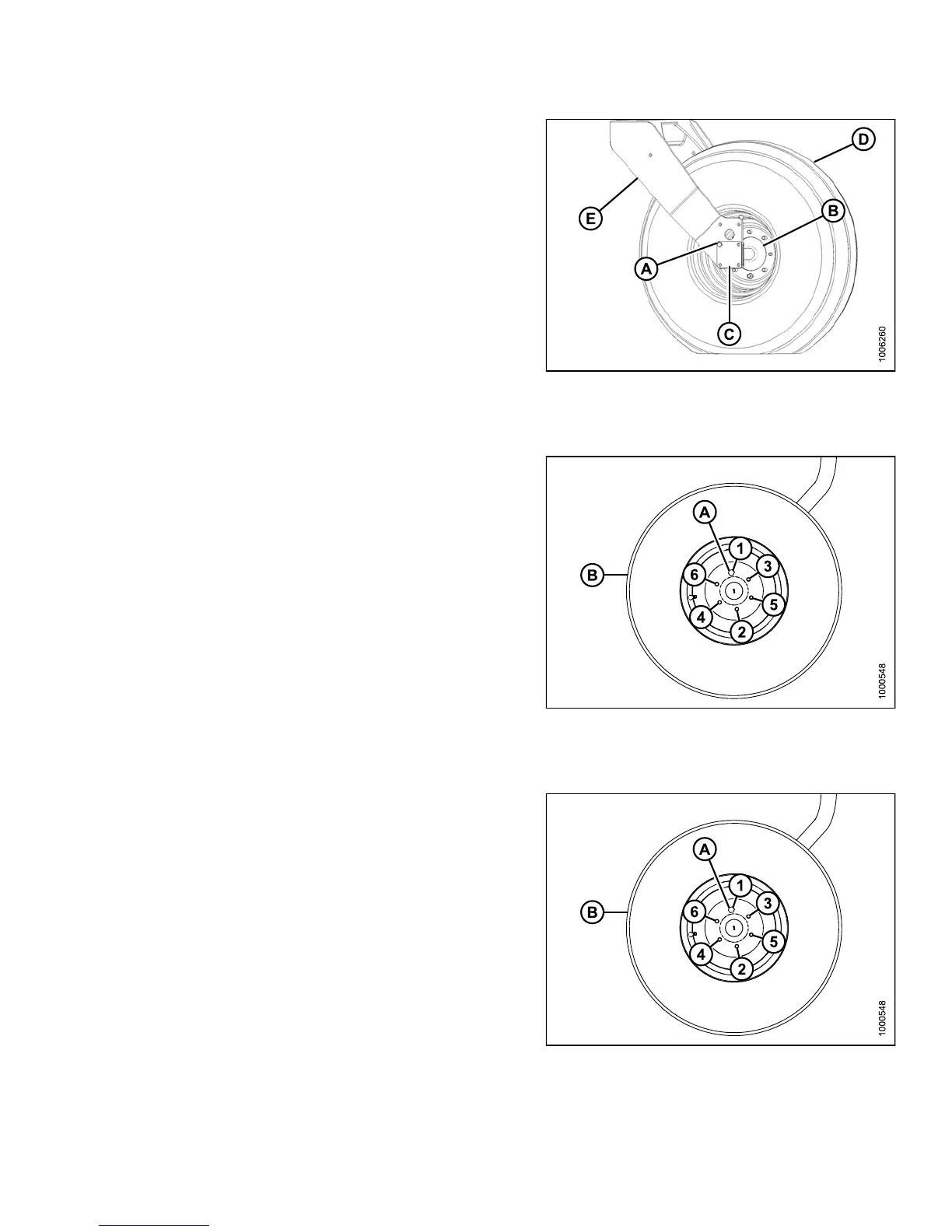

Figure 5.221: Caster Wheel Assembly
Removing Formed Caster Wheel
1. Raise c ast
er wheel, refer to Raising Caster Wheel
(Formed an
d Forked), page 420.
2. Remove th
e six bolts (A) that secure the wheel (B) to
the hub.
3. Remove wh
eel (B).
Figure 5.222: Caster Wheel Assembly
Installing Formed Caster Wheel
1. Position wheel assembly (B) on hub, and install the six
wheel bolts (A).
2. Torque bolts (A), refer to Tightening Caster Wheel
Nuts, page 419.
3. Lower caster w heel, refer to Lowering Caster Wheel
(Formed and Forked), page 421.
Fig
ure 5.223: Caster Wheel Assembly
147649 423 Revision A
