Installation and Commissioning
GARD 8000 SYS RFL Electronics
November 28, 2017 4-37 973.334.3100

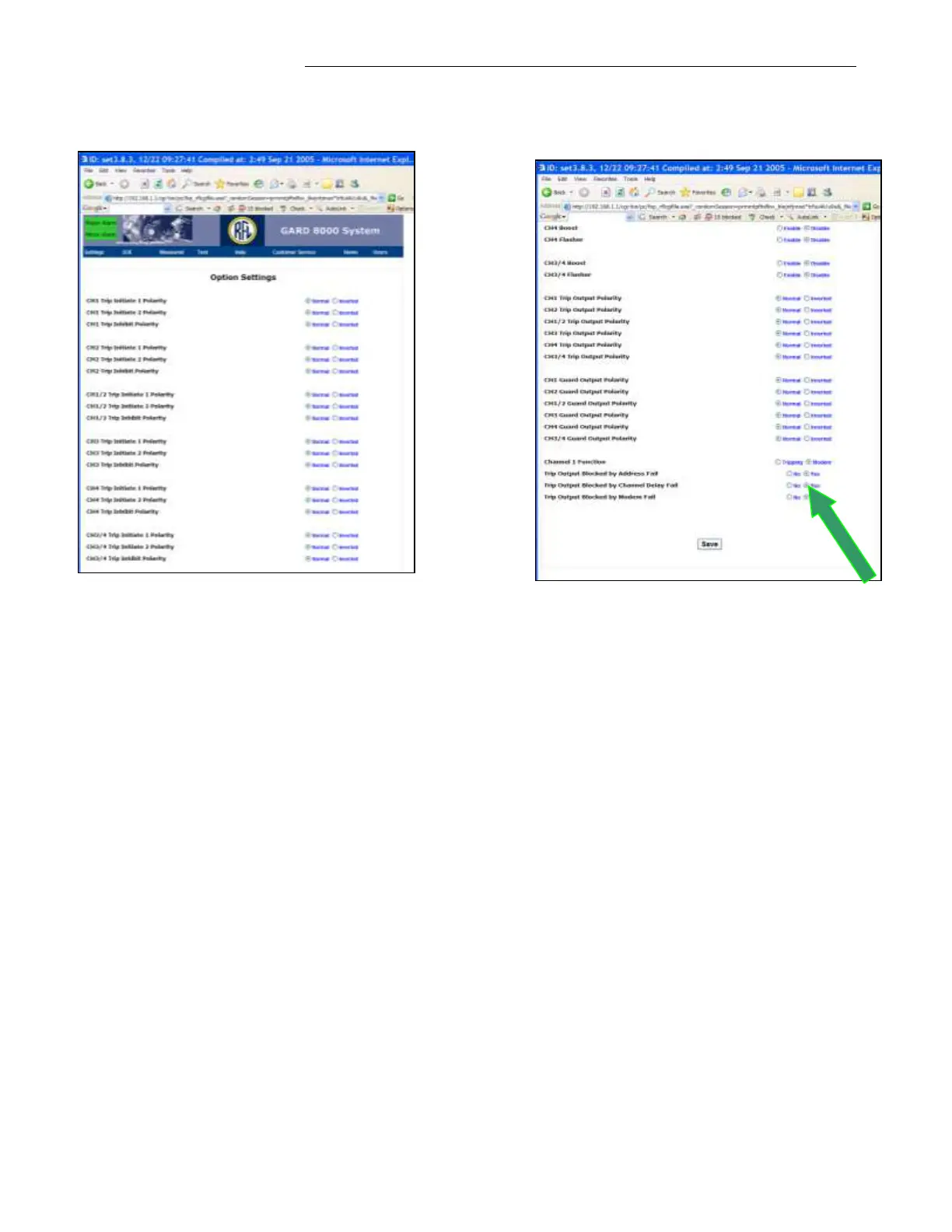

4.6.2.6 VERIFYING CHASSIS CONFIGURATION STATUS
1. Click on ‘Home’ to display ‘Chassis Configuration Status’.
2. At ‘Chassis Configuration Status’ click on ‘Audio Tone’ module.
3. At the Audio Tone Status page click on ‘General Status’
4. The ‘General Status’ page and ‘Channel Status’ page will display a current status of the local
chassis. If channel 1 is configured for a Modem the status report under Modem will display a
status of ‘Remote Channels’.
5. If the communication link to the local chassis was not established and a hard loopback or
software loopback were not enabled, all four channels will indicate a Loss of Signal as shown
in the following webpage. Also, the Front Panel LEDs will indicate a ‘Loss of Comms’
condition and a type of Alarm or Condition will be indicated on the Custom Designed Front
Panel Nameplate.
