Analog-to-digital converter (ADC) RM0091
172/742 Doc ID 018940 Rev 1
Software Procedure:
● Ensure that ADEN=0
● Set ADCAL=1
● Wait until ADCAL=0
● The calibration factor can be read from bits 6:0 of ADC_DR register

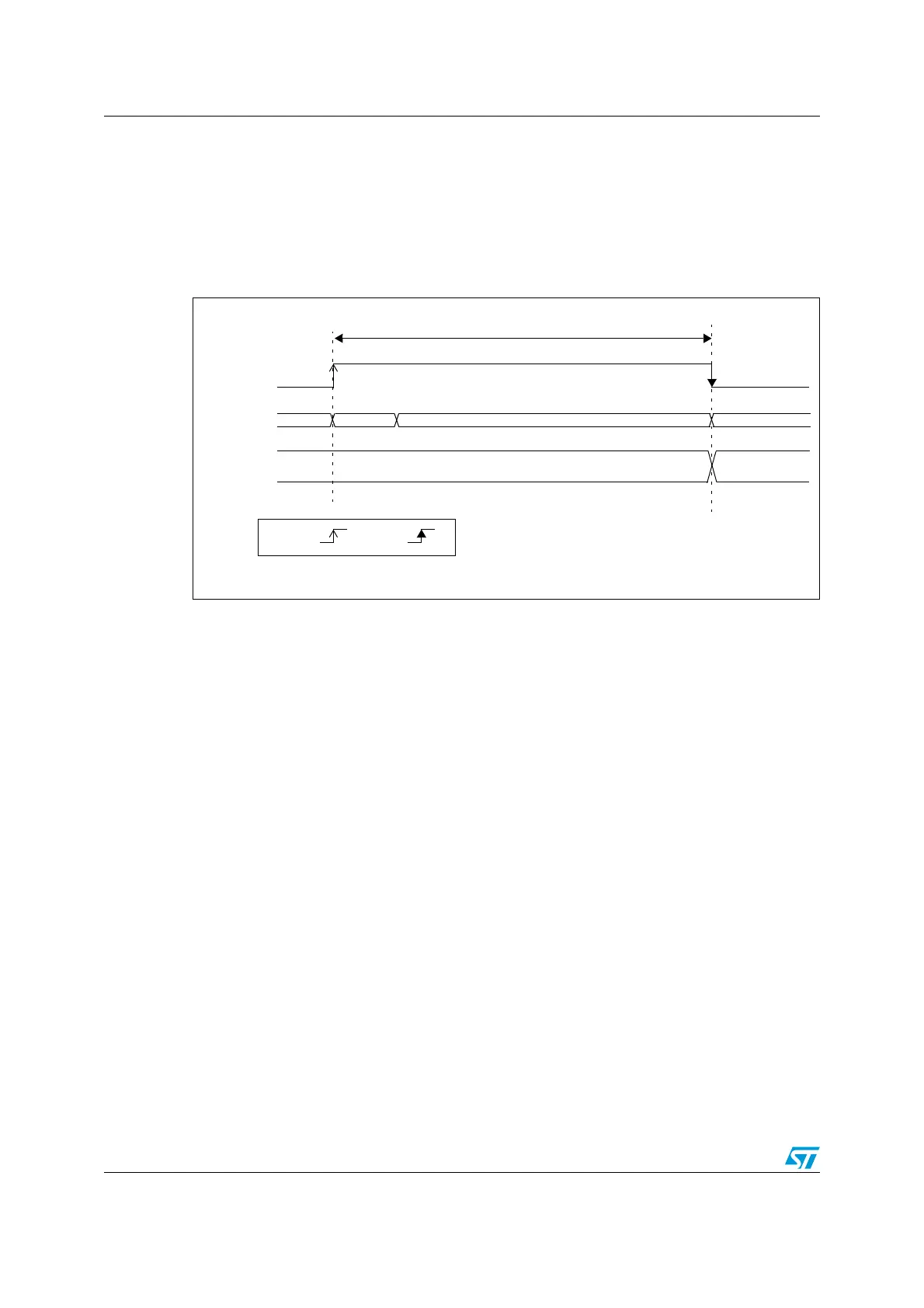

Figure 23. ADC calibration
12.4.2 ADC on-off control (ADEN, ADDIS, ADRDY)
By default, the ADC is disabled and put in power-down mode (ADEN=0).
As shown in Figure 24, the ADC needs a stabilization time of t
STAB
before it starts
converting accurately.
Two control bits are used to enable or disable the ADC:
● Set ADEN=1 to enable the ADC. The ADRDY flag is set as soon as the ADC is ready
for operation.
● Set ADDIS=1 to disable the ADC and put the ADC in power down mode. The ADEN
and ADDIS bits are then automatically cleared by hardware as soon as the ADC is fully
disabled.
Conversion can then start either by setting SWSTART=1 (refer to Section 12.5: Conversion
on external trigger and trigger polarity (EXTSEL, EXTEN) on page 178) or when an external
trigger event occurs if triggers are enabled.
Follow this procedure to enable the ADC:
● Set ADEN=1 in the ADC_CR register.
● Wait until ADRDY=1 in the ADC_ISR register (ADRDY is set after the ADC startup
time). This can be handled by interrupt if the interrupt is enabled by setting the
ADRDYIE bit in the ADC_IER register.
by S/W by H/W
t
CAB
ADCAL
ADC State
ADC_DR[6:0]
OFF Startup CALIBRATE OFF
0x00
CALIBRATION
FACTOR
To Next Page
