Slave receiver
RXNE is set in I2Cx_ISR when the I2Cx_RXDR is full, and generates an interrupt if RXIE is
set in I2Cx_CR1. RXNE is cleared when I2Cx_RXDR is read.
When a STOP is received and STOPIE is set in I2Cx_CR1, STOPF is set in I2Cx_ISR and
an interrupt is generated.

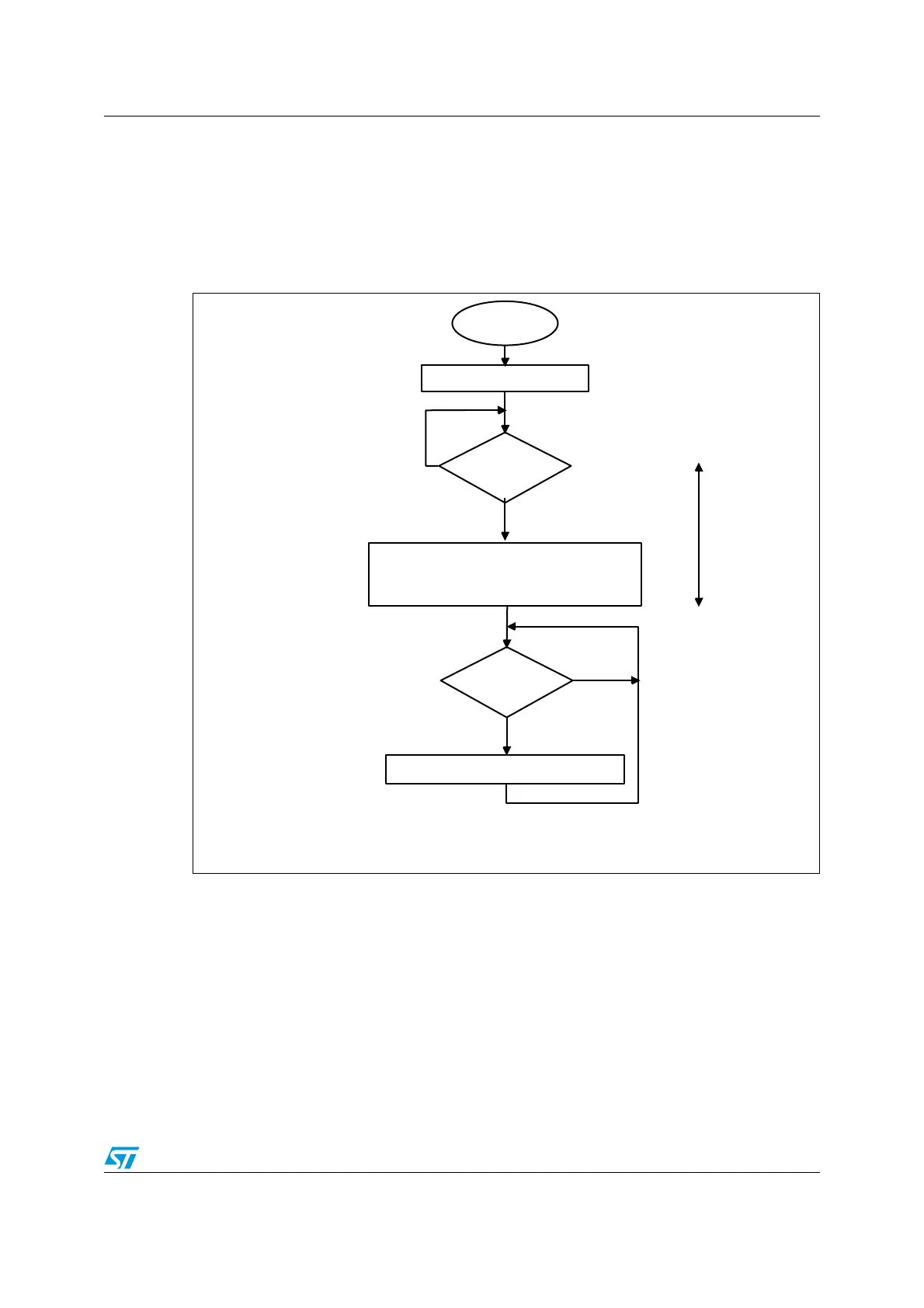

Figure 206. Transfer sequence flowchart for slave receiver with NOSTRETCH=0
MS19855V1
Slave initialization
Slave reception
Read ADDCODE and DIR in I2Cx_ISR
Set I2Cx_ICR.ADDRCF
Write I2Cx_RXDR.RXDATA
I2Cx_ISR.ADDR
=1?
No
Yes
I2Cx_ISR.RXNE
=1?
Yes
No
SCL
stretched
